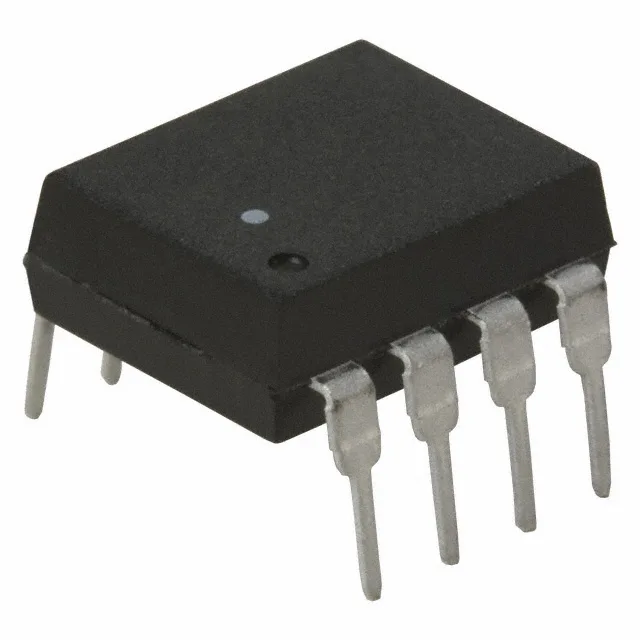

HCNW4506-000E
Broadcom Limited
OPTOISO 5KV OPEN COLLECTOR 8DIP
[IN STOCK] In Stock: 298 pcs
MOQ 1 · Tube · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Input type | DC |
| Output type | Open Collector, Schottky Clamped |
| Mounting | Through Hole |
| Supply voltage | 4.5V ~ 30V |
| Voltage - isolation | 5000Vrms |
| Voltage - forward (Vf) | 1.6V |
| Current - output (Channel) | 15 mA |
| Current - DC forward (If) | 25mA |
| Operating temperature | -40°C ~ 100°C |
| Package | Tube |
| Case | 8-DIP (0.400\", 10.16mm) |
| Channels | 1 |
| Inputs - side 1/Side 2 | 1/0 |
| Propagation delay tpLH (tpHL) | 550ns, 400ns |
| Common mode transient immunity | 15kV/µs |
