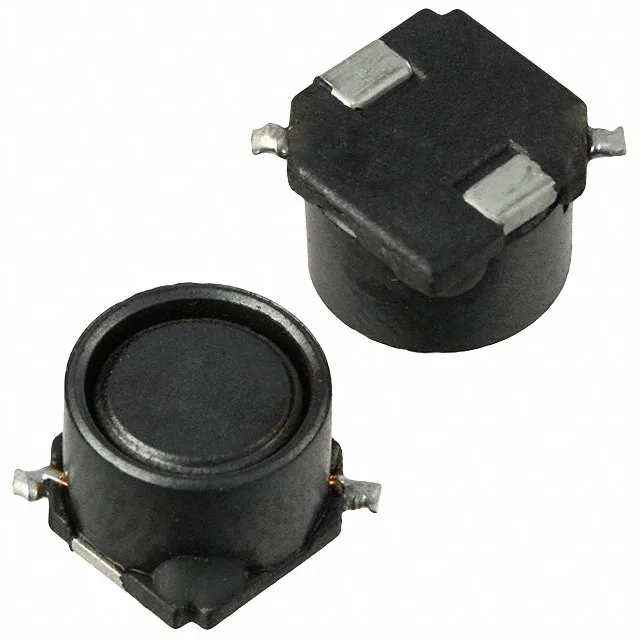

SRR7045-330M
Bourns Inc.
[IN STOCK] In Stock: 157 pcs
MOQ 1 · Tape & Reel (TR) Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRR7045 |
| Mounting | Surface Mount |
| Current rating | 1.6 A |
| Current - saturation | 1A |
| Frequency - self resonant | 12MHz |
| Inductance frequency - test | 100 kHz |
| Operating temperature | -40°C ~ 125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.276\" L x 0.276\" W (7.00mm x 7.00mm) |
| Height - seated | 0.189\" (4.80mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Q @ freq | 25 @ 2.52MHz |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 33 µH |
| Case | Nonstandard |
| DC resistance | 115mOhm Max |
SRR7045-330M
