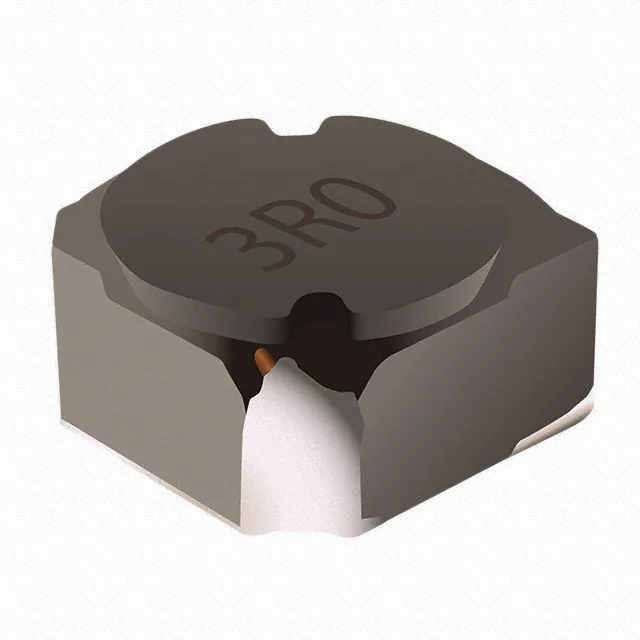

SRR6040A-180M
Bourns Inc.
[IN STOCK] In Stock: 9 pcs
MOQ 1 · Tape & Reel (TR) Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | SRR6040A |
| Mounting | Surface Mount |
| Current rating | 1.5 A |
| Current - saturation | 1.35A |
| Inductance frequency - test | 10 kHz |
| Operating temperature | -40°C ~ 125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.264\" L x 0.264\" W (6.70mm x 6.70mm) |
| Height - seated | 0.157\" (4.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 18 µH |
| Case | Nonstandard, Corner Terminals |
| DC resistance | 75mOhm Max |
