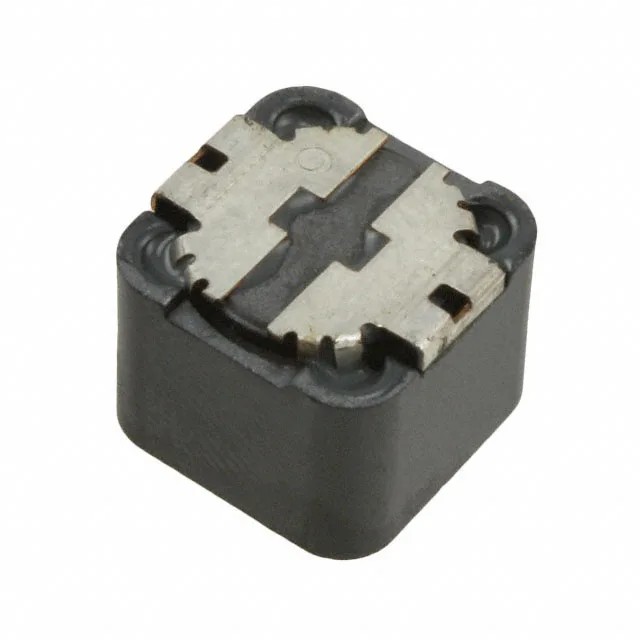

SRR1210-331M
Bourns Inc.
[IN STOCK] In Stock: 19 pcs
MOQ 1 · Tape & Reel (TR) Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRR1210 |
| Mounting | Surface Mount |
| Current rating | 1.4 A |
| Current - saturation | 1.2A |
| Frequency - self resonant | 1.8MHz |
| Inductance frequency - test | 100 kHz |
| Operating temperature | -40°C ~ 125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.472\" L x 0.472\" W (12.00mm x 12.00mm) |
| Height - seated | 0.394\" (10.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Q @ freq | 14 @ 796kHz |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 330 µH |
| Case | Nonstandard |
| DC resistance | 450mOhm Max |
SRR1210-331M
