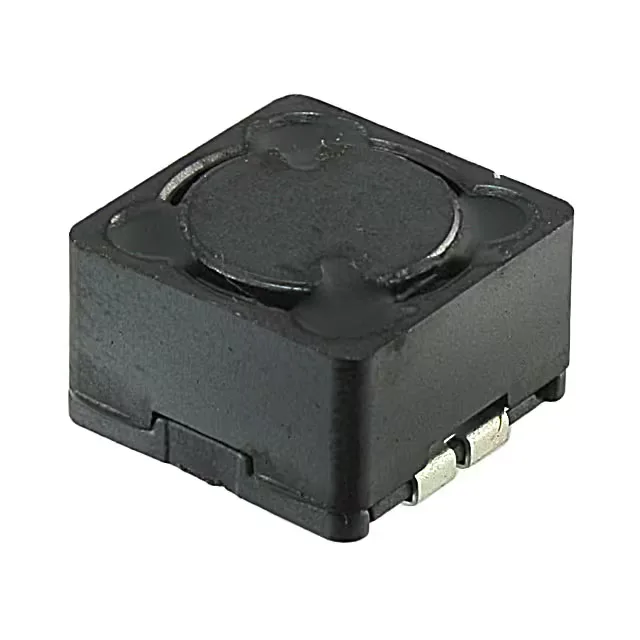

SRR1208-150ML
Bourns Inc.
[IN STOCK] In Stock: 14 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRR1208 |
| Mounting | Surface Mount |
| Current rating | 4 A |
| Current - saturation | 5.6A |
| Frequency - self resonant | 11MHz |
| Inductance frequency - test | 1 kHz |
| Operating temperature | -40°C~125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.500\" L x 0.500\" W (12.70mm x 12.70mm) |
| Height - seated | 0.335\" (8.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Q @ freq | 21 @ 2.52MHz |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 15 µH |
| Case | Nonstandard |
| DC resistance | 36mOhm Max |
