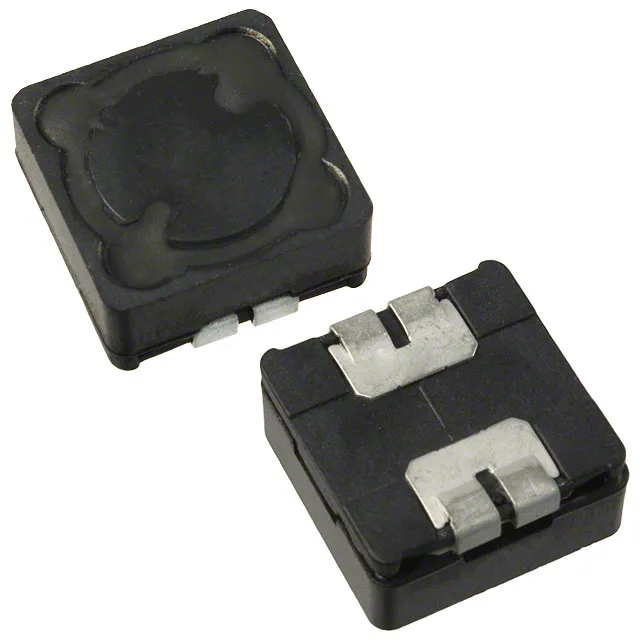

SRR1206-101YL
Bourns Inc.
[IN STOCK] In Stock: 50 pcs
MOQ 1 · Tape & Reel (TR) Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRR1206 |
| Mounting | Surface Mount |
| Current rating | 1.1 A |
| Current - saturation | 1.9A |
| Frequency - self resonant | 6MHz |
| Inductance frequency - test | 1 kHz |
| Operating temperature | -40°C ~ 125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.500\" L x 0.500\" W (12.70mm x 12.70mm) |
| Height - seated | 0.256\" (6.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Q @ freq | 13 @ 796kHz |
| Shielding | Shielded |
| Tolerance | ±15% |
| Inductance | 100 µH |
| Case | Nonstandard |
| DC resistance | 220mOhm Max |
SRR1206-101YL
