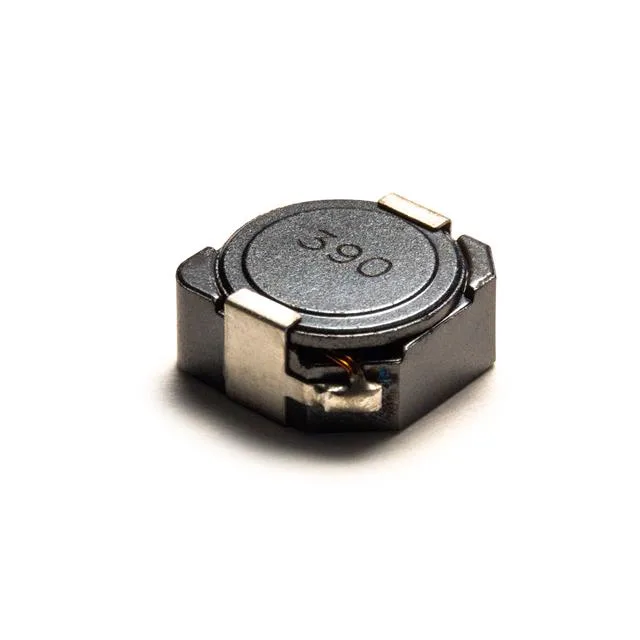

SRR1050HA-221Y
Bourns Inc.
[IN STOCK] In Stock: 5 pcs
MOQ 1 · Tape & Reel (TR) Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRR1050HA |
| Mounting | Surface Mount |
| Current rating | 940 mA |
| Current - saturation | 940mA |
| Frequency - self resonant | 3MHz |
| Inductance frequency - test | 100 kHz |
| Operating temperature | -55°C ~ 150°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.402\" L x 0.394\" W (10.20mm x 10.00mm) |
| Height - seated | 0.201\" (5.10mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Tolerance | ±30% |
| Inductance | 220 µH |
| Case | Nonstandard |
| DC resistance | 500mOhm Max |
