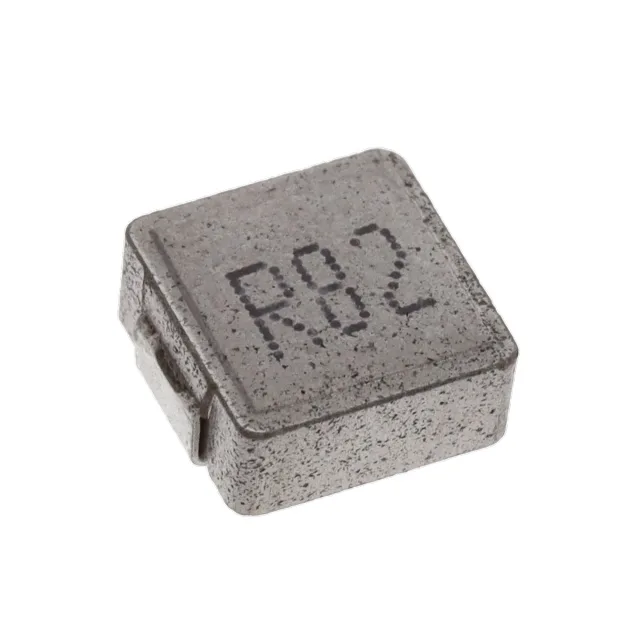

SRP6530A-R82M
Bourns Inc.
[IN STOCK] In Stock: 50 pcs
MOQ 1 · Tape & Reel (TR) Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | SRP6530A |
| Mounting | Surface Mount |
| Current rating | 14 A |
| Current - saturation | 26A |
| Frequency - self resonant | 68MHz |
| Inductance frequency - test | 500 kHz |
| Operating temperature | -55°C ~ 155°C |
| Material - core | Metal Composite |
| Size (Dimension) | 0.280\" L x 0.260\" W (7.10mm x 6.60mm) |
| Height - seated | 0.118\" (3.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Ratings | AEC-Q200 |
| Q @ freq | 8 @ 25.2MHz |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 820 nH |
| Case | Nonstandard |
| DC resistance | 7.8mOhm Max |
SRP6530A-R82M
