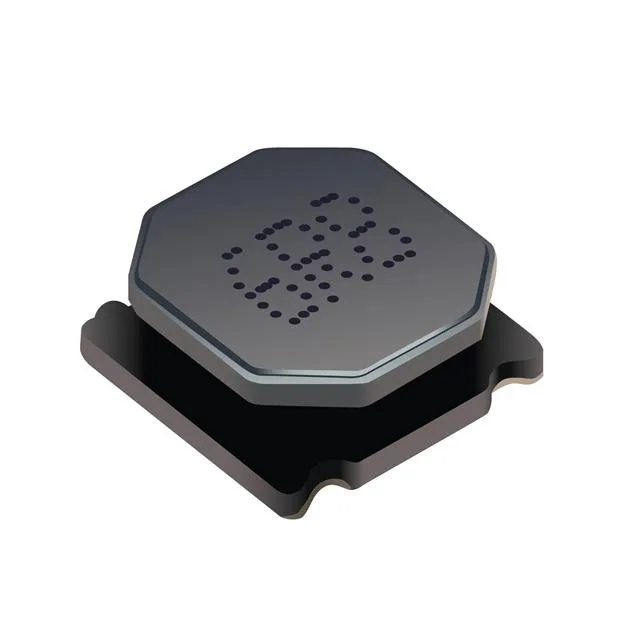

SRN6028C-121M
Bourns Inc.
[IN STOCK] In Stock: 17 pcs
MOQ 1 · Tape & Reel (TR) Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRN6028C |
| Mounting | Surface Mount |
| Current rating | 680 mA |
| Current - saturation | 720mA |
| Frequency - self resonant | 7MHz |
| Inductance frequency - test | 100 kHz |
| Operating temperature | -40°C ~ 125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.236\" L x 0.236\" W (6.00mm x 6.00mm) |
| Height - seated | 0.110\" (2.80mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Q @ freq | 20 @ 100kHz |
| Shielding | Semi-Shielded |
| Tolerance | ±20% |
| Inductance | 120 µH |
| Case | 2424 (6060 Metric) |
| DC resistance | 750mOhm |
