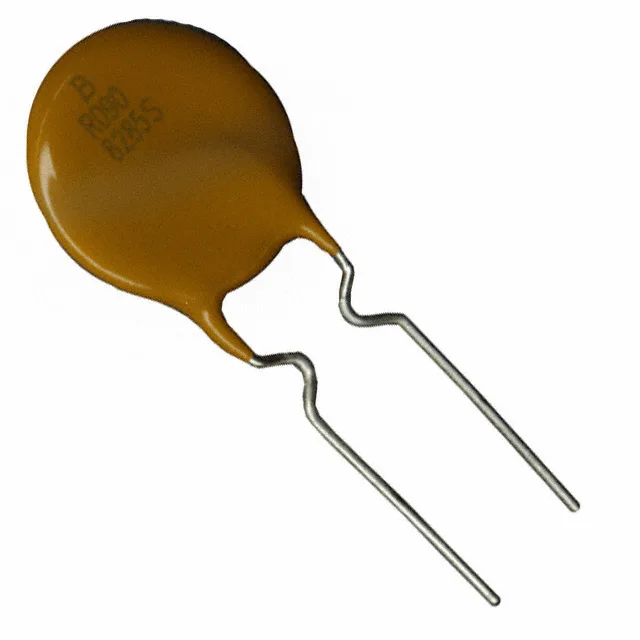

MF-R090
Bourns Inc.
[IN STOCK] In Stock: 452 pcs
MOQ 5 · Bulk · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Polymeric |
| Series | Multifuse®, MF-R |
| Mounting | Through Hole |
| Voltage - max | 60V |
| Current - max | 40 A |
| Current - trip | 1.8 A |
| Current - hold (Ih) | 900 mA |
| Operating temperature | -40°C ~ 85°C |
| Size (Dimension) | 0.461\" L x 0.122\" W (11.70mm x 3.10mm) |
| Height - seated | 0.657\" (16.70mm) |
| Approval agency | cURus, TUV |
| Package | Bulk |
| Lead spacing | 0.201\" (5.10mm) |
| Time to trip | 7.2 s |
| Case | Radial, Disc |
| Resistance - initial (Ri) | 140 mOhms |
| Resistance - post trip (R1) | 470 mOhms |
