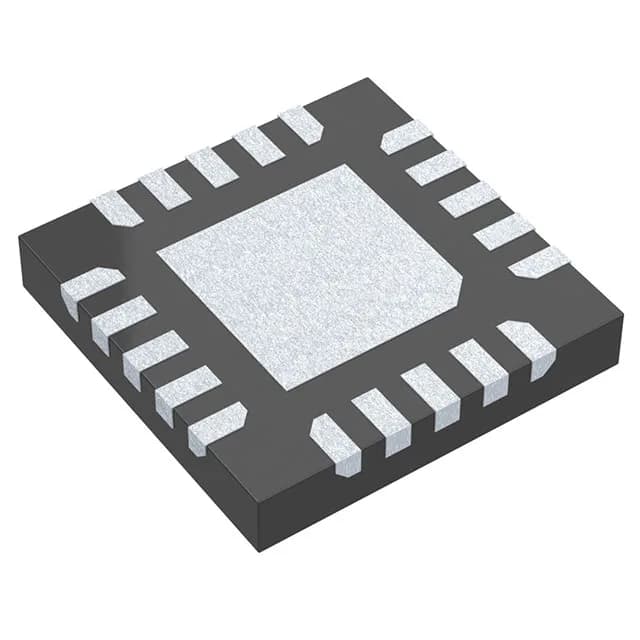

IQS7222A001QNR 9-Ch Cap Touch IQ Switch® — Azoteq | ICBOMS
MPN IQS7222A001QNR
Active
Spot Stock · 24-48h Dispatch
100% Original Sealed
9 CHANNEL MUTUAL / 8 SELF- CAPAC
In Stock: 10,695 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$1.60 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$1.60
10+ pcs
$1.44
30+ pcs
$1.31
100+ pcs
$1.18
500+ pcs
$1.10
1,000+ pcs
$1.04
Working on a production BOM or have a target unit price? Submit Target Price
[SPEC] Essential Parameters Snapshot Full Specifications (12)
Package / Case 20-UFQFN Exposed Pad
Supply Voltage 1.71V ~ 3.5V, 2.2V ~ 3.5V
Full Technical Specifications
12 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Buttons, Slider |
| Series | IQ Switch® ProxFusion® |
| Mounting | Surface Mount |
| Supply voltage | 1.71V ~ 3.5V, 2.2V ~ 3.5V |
| Current - supply | 750µA |
| I/O channels | 13 |
| Interface | I²C |
| Operating temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 20-UFQFN Exposed Pad |
| LED driver channels | Up to 12 |
| Proximity detection | Yes |
Series Sibling Variants
Azoteq (Pty) Ltd IQ Switch® ProxFusion® Series Models
Sibling variants, package options, and speed/density grades in this Azoteq (Pty) Ltd semiconductor series. Active Shenzhen warehouse allocation and rapid 24-48h dispatch.
IQS7222A001QNR
