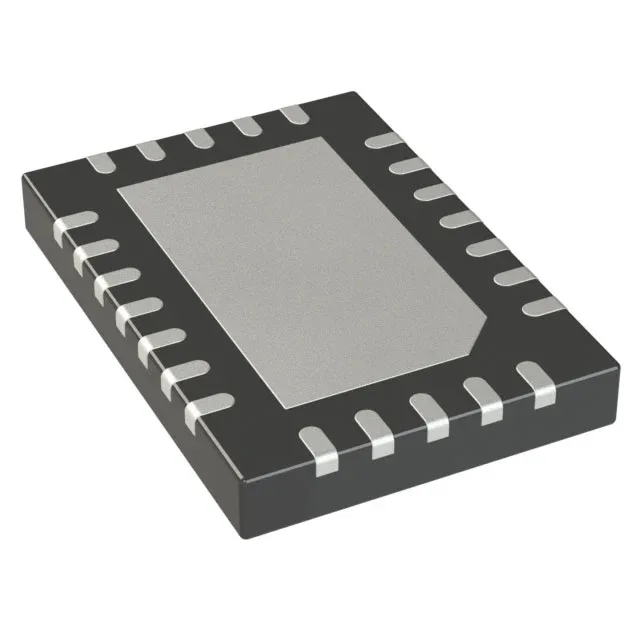

Analog Devices MAX17574ATG+, IC REG BUCK ADJ 3A 24TQFN, Step-Down (Buck) Topology, 4.5V to 60V Input, Adjustable Output 0.9V to 54V, 3A Output, Synchronous Rectifier, -40°C to 125°C, Surface Mount 24-WFQFN Exposed Pad.
| Parameter | Value |
|---|---|
| Output type | Adjustable |
| Mounting | Surface Mount |
| Voltage - input | 4.5V |
| Voltage - output | 54V |
| Voltage - output (Min (Fixed)) | 0.9V |
| Output current | 3A |
| Frequency - switching | 100kHz ~ 2.2MHz |
| I/O channels | 1 |
| Operating temperature | -40°C ~ 125°C (TA) |
| Package | Tray |
| Function | Step-Down |
| Topology | Buck |
| Case | 24-WFQFN Exposed Pad |
| Output configuration | Positive |
| Synchronous rectifier | Yes |
Rated for 3A continuous, the MAX17574ATG+ uses internal synchronous FETs for the high-side and low-side switches. That eliminates the external catch diode.
Lower frequencies reduce switching losses for heavy-load efficiency; higher frequencies shrink the inductor and output capacitor, saving board area. The part synchronizes to an external clock if needed.
It is ROHS3 compliant.
It is a step-down (buck) switching regulator with adjustable output, synchronous rectification, and a single 3A output.
