Analog Devices LTC6951IUHF#PBF, PLL clock synthesizer, 2.5 GHz max frequency, CML and LVDS outputs, 3.15V to 3.45V supply, -40°C to 105°C, 40-WFQFN exposed pad, Tube, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Voltage | 3.15V ~ 3.45V |
| Frequency | 2.5GHz |
| Operating temperature | -40°C ~ 105°C |
| PLL | Yes |
| Input | Clock |
| Output | CML, LVDS |
| Package | Tube |

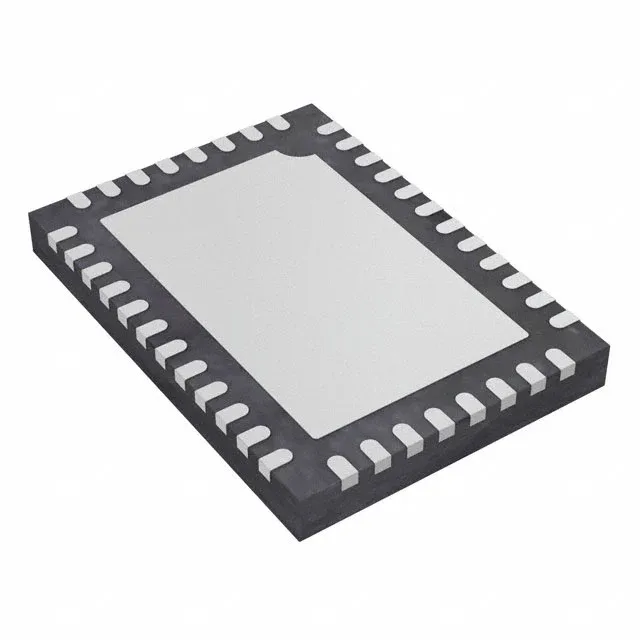

| Case | 40-WFQFN Exposed Pad |
| Divider (Multiplier) | Yes/No |
| Number of circuits | 1 |
| Ratio - Input:Output | 1:5 |
| Differential - Input:Output | Yes/Yes |
The LTC6951IUHF#PBF is a single-circuit PLL clock synthesizer that accepts a clock input and produces up to five outputs in CML or LVDS format, with a maximum output frequency of 2.5 GHz.
The supply range is 3.15V to 3.45V, so a nominal 3.3V rail sits comfortably inside the window.
The exposed pad also serves as the low-inductance return path for the PLL charge pump — a cold solder joint under the pad will degrade phase noise.
Yes. The supply voltage range is 3.15V to 3.45V, so a nominal 3.3V rail is within tolerance.
The #PBF suffix indicates ROHS3 compliant finish. The base part number LTC6951IUHF is the same silicon; the #PBF variant is the lead-free version. Pin compatibility is identical — the package and pinout did not change.
