ADA4940-1ACPZ-RL

Analog Devices

Analog Devices ADA4940-1ACPZ-RL differential amplifier, single circuit, 260 MHz -3 dB bandwidth, 95 V/µs slew rate, 16-LFCSP-VQ (3x3) package, Tape & Reel.

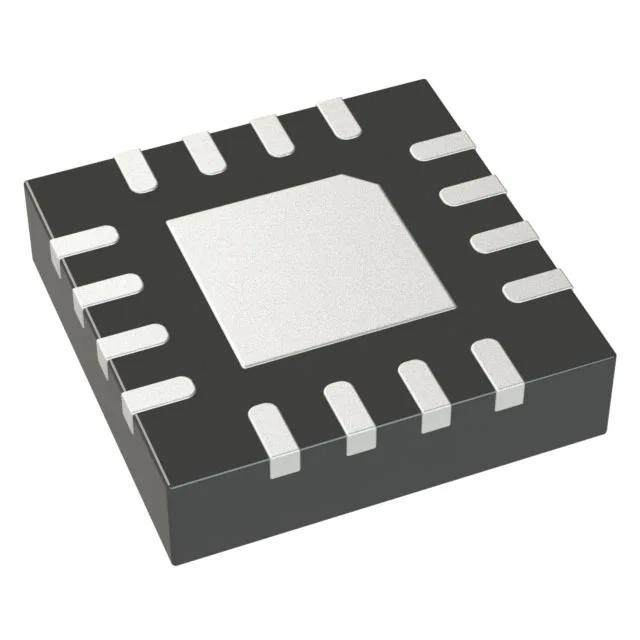

Analog Devices ADA4940-1ACPZ-RL
[ALLOC] Allocation Sourcing · Shortage Support
$2.94/ pc

Volume pricing

Buy Now

MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T

Technical specifications

ADA4940-1ACPZ-RL specifications
Parameter / AttributeSpecification / Value
Output typeDifferential
MountingSurface Mount
Amplifier typeDifferential
Voltage - input offset60 µV
Voltage - supply span7 V
Current - supply1.25mA
Current - input bias1.1 µA
Current - output (Channel)46 mA
Operating temperature-40°C ~ 125°C
-3db bandwidth260 MHz
PackageTape & Reel (TR); Cut Tape (CT)
Slew rate95V/µs
Case16-VFQFN Exposed Pad, CSP
Number of circuits1

Technical details

Differential amplifier, 260 MHz, 95 V/µs — single-channel LFCSP

The ADA4940-1ACPZ-RL is a single-circuit differential amplifier from Analog Devices, designed for driving high-speed ADCs or transmitting differential signals over twisted-pair lines. Supply current is 1.25 mA typical, keeping the thermal budget in the 16-lead LFCSP package manageable even in dense multi-channel arrays.

Supply range, output drive, and temperature grade

Each output channel can source or sink 46 mA, enough to drive the sampling capacitor of a 12- to 16-bit SAR ADC without an external buffer. The output type is differential, meaning the amplifier produces a balanced pair of signals centered around a common-mode voltage — this rejects ground noise and doubles the dynamic range into a differential ADC input.

Package, reel format, and sourcing posture

The supplier device package is 16-LFCSP-VQ (3x3). Supplied on Tape & Reel (TR) or Cut Tape (CT) — the TR quantity is the standard reel count; CT is for prototype or low-volume builds. Analog Devices lists the ADA4940-1ACPZ-RL as Active in production, with ROHS3 compliance.
