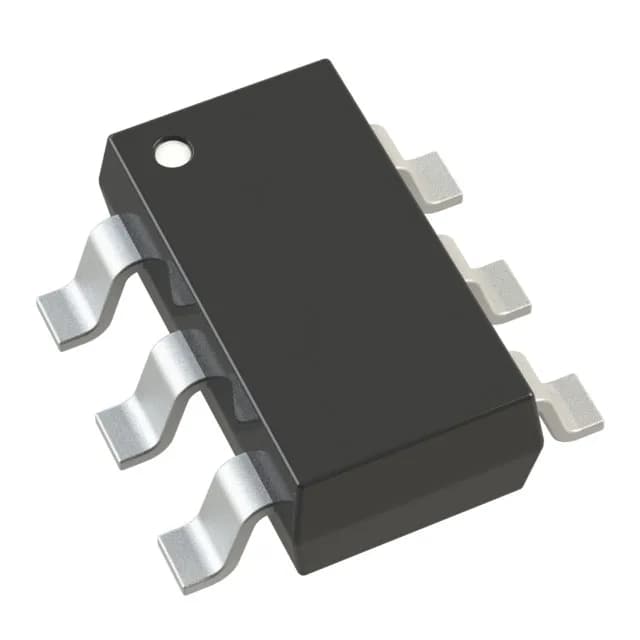

Analog Devices ADA4895-1ARJZ-R2, single general-purpose op-amp, 943V/µs slew rate, 236 MHz -3dB bandwidth, rail-to-rail output, 3V to 10V supply, SOT-23-6 package, -40°C to 125°C.
| Parameter | Value |
|---|---|
| Output type | Rail-to-Rail |
| Mounting type | Surface Mount |
| Amplifier type | General Purpose |
| Voltage - input offset | 53 µV |
| Voltage - supply span | 10 V |
| Current - supply | 3mA |
| Current - input bias | 11 µA |
| Current - output (Channel) | 116 mA |
| Operating temperature | -40°C ~ 125°C |
| -3db bandwidth | 236 MHz |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Slew rate | 943V/µs |
| Case | SOT-23-6 |
| Number of circuits | 1 |
The ADA4895-1ARJZ-R2: Slew rate is 943V/µs, bandwidth 236 MHz, rail-to-rail output, supply 3V to 10V, supply current 3 mA, output current 116 mA.
Slew rate 943V/µs, bandwidth 236 MHz. Input offset 53 µV, bias current 11 µA.
SOT-23-6 package, surface mount, supply current 3 mA, output current 116 mA.
It remains a current-production part suitable for new designs.
The slew rate is 943V/µs, which is approximately 70× faster than a typical 80 MHz general-purpose op-amp. This makes it suitable for high-speed signal conditioning, ADC drivers, and video applications.
The ADA4851-1WYRJZ-R7 is a single-channel voltage-feedback amplifier with 105 MHz bandwidth and 375 V/µs slew rate in the same SOT-23-6 package, and it carries an automotive grade. It is slower but offers a qualified alternative. The ADA4841-2YRMZ-R7 is a dual-channel precision part at 80 MHz and 13 V/µs — not a speed match.
