The AD9243ASZRL is a 14-bit pipelined ADC from Analog Devices, sampling at 3 MSPS — a combination that suits applications needing wide dynamic range at moderate conversion rates, such as medical imaging, communications receivers, and industrial data acquisition. It accepts both differential and single-ended inputs through a single S/H-ADC channel, with a 1:1 S/H-to-ADC ratio — meaning you can drive it with a transformer-coupled differential front-end for best SNR, or use a single-ended buffer when board space is tight.
AD9243ASZRL
Analog Devices

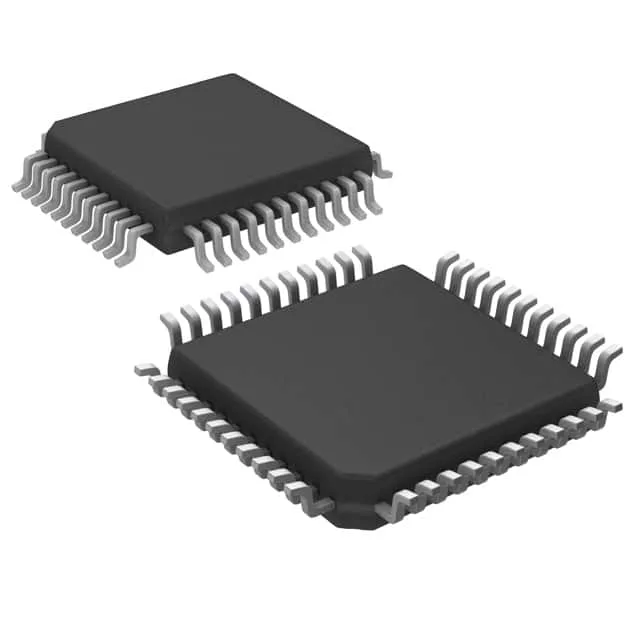

Analog Devices AD9243ASZRL pipelined ADC, 14-bit, 3 MSPS, differential/single-ended input, parallel interface, 44-MQFP (10x10 mm), surface mount, industrial temperature range.
[IN STOCK] In Stock: 1 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Input type | Differential, Single Ended |
| Mounting | Surface Mount |
| Reference type | External, Internal |
| Voltage - supply, analog | 5V |
| Voltage - supply, digital | 5V |
| I/O channels | 1 |
| Data interface | Parallel |
| Operating temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Architecture | Pipelined |
| Configuration | S/H-ADC |
| Number of bits | 14 |
| Case | 44-QFP |
| Ratio - s (H:ADC) | 1:1 |
| Number of a (D converters) | 1 |
| Sampling rate (Per second) | 3M |
