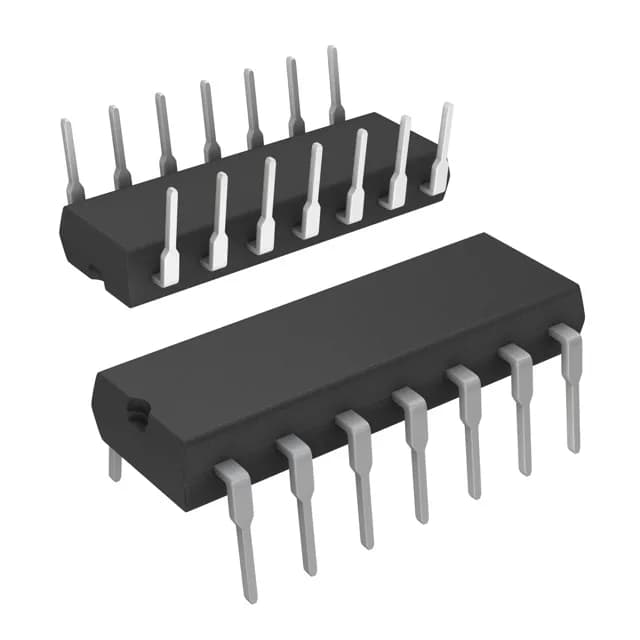

AD704JNZ General Purpose Op-Amp, 800 kHz, 0.1 V/µs, 14-PDIP

MPNAD704JNZ
End of Life

Analog Devices AD704JNZ, General Purpose Amplifier, 4 Circuits, 800 kHz Gain Bandwidth, 0.1 V/µs Slew Rate, 4 V to 36 V Supply, 0°C to 70°C, 14-DIP (0.300", 7.62mm) Tube.

$15.94Ref. price · indicative, final on quote
AD704JNZ datasheet
Packaging14-DIP (0.300", 7.62mm)
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

AD704JNZ Technical Specifications
ParameterValue
Mounting typeThrough Hole
Amplifier typeGeneral Purpose
Voltage - input offset50 µV
Voltage - supply span36 V
Current - supply1.5mA (x4 Channels)
Current - input bias100 pA
Current - output (Channel)15 mA
Operating temperature0°C ~ 70°C
-3db bandwidth800 kHz
Gain bandwidth product800 kHz
PackageTube
Slew rate0.1V/µs
Case14-DIP (0.300\", 7.62mm)
Number of circuits4

Product details

Package and mounting

Housed in a 14-pin DIP with 0.300 inch (7.62 mm) body width, the AD704JNZ is a through-hole part. It fits standard DIP sockets or can be soldered directly into plated through-holes on a PCB. The PDIP package is common in breadboard prototyping, legacy designs, and low-volume production where hand-assembly is practical. Supplied in tubes, not tape-and-reel.

Lifecycle and sourcing

The AD704JNZ carries an Active product status and is ROHS3 compliant. No end-of-life notice is on record, so it remains a safe choice for production BOMs and new designs. Sourced through independent distribution; availability and current pricing are confirmed at quote time against an RFQ.

Frequently asked questions

Can I use AD704JNZ in a single-supply circuit?

Yes, the 4 V minimum supply allows operation on a single 5 V rail. The output swing will not reach the negative rail, so use a virtual ground or bias the inputs to mid-supply for single-supply AC coupling.

What is AD704JNZ's listed slew rate?

The slew rate is 0.1 V/µs, which limits large-signal bandwidth to about 16 kHz for a 1 V output swing.
