AD5601BCPZ-RL7
Analog Devices · nanoDAC® Series
IC DAC 8BIT V-OUT 6LFCSP-WD
[IN STOCK] In Stock: 4 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | nanoDAC® |
| Output type | Voltage - Buffered |
| Mounting | Surface Mount |
| Reference type | Supply |
| Voltage - supply, analog | 2.7V ~ 5.5V |
| Voltage - supply, digital | 2.7V ~ 5.5V |
| Data interface | SPI, DSP |
| Operating temperature | -40°C ~ 125°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Architecture | String DAC |
| INL (DNL) | ±0.5 (Max), ±0.5 (Max) |
| Settling time | 10µs |
| Number of bits | 8 |

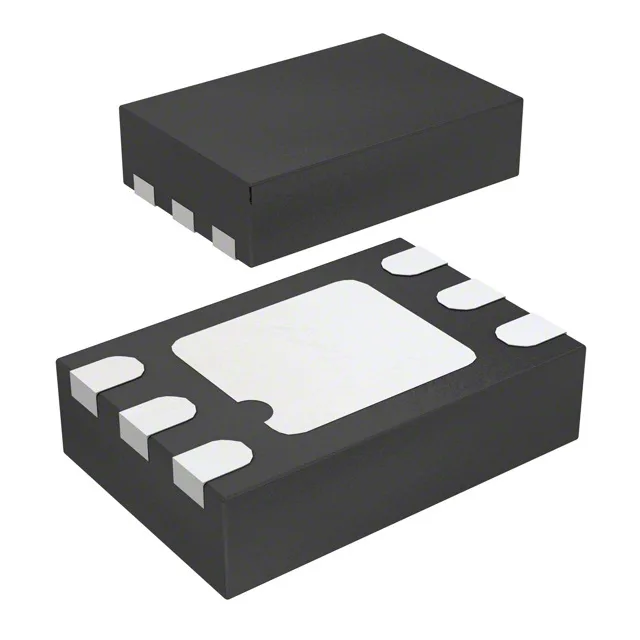

| Case | 6-VDFN Exposed Pad, CSP |
| Differential output | No |
| Number of d (A converters) | 1 |
