Alpha & Omega Semiconductor Inc. AOY66923
MPNAOY66923
Active

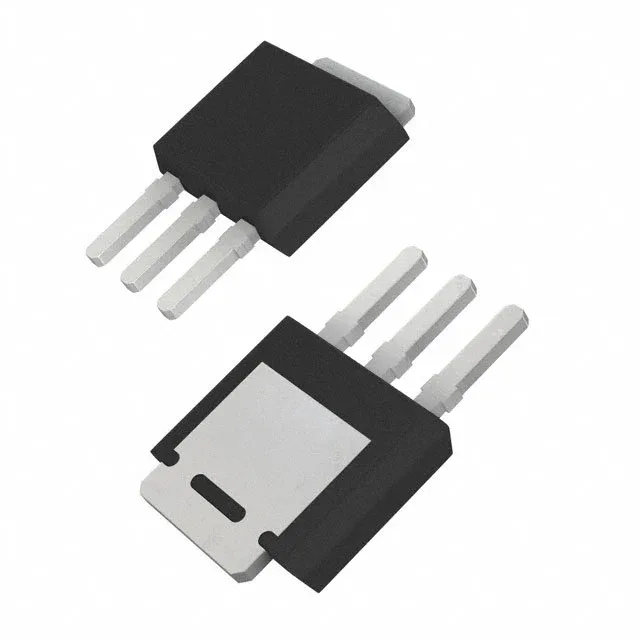

MOSFET N-CH 100V 16.5/58A TO251B
$1.23Ref. price · indicative, final on quote
PackagingTO-251-3 Stub Leads, IPak
RoHSROHS3 Compliant
SeriesAlphaSGT™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AlphaSGT™ |
| FET type | N-Channel |
| Mounting | Through Hole |
| Drain to source voltage | 100 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 16.5A (Ta), 58A (Tc) |
| Power dissipation | 6.2W (Ta), 73W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tube |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | TO-251-3 Stub Leads, IPak |
| Vgs(th) (Max) @ id | 2.6V @ 250µA |
| Rds on (Max) @ id, vgs | 11mOhm @ 20A, 10V |
| Gate charge (Qg) (Max) @ vgs | 35 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 1725 pF @ 50 V |
