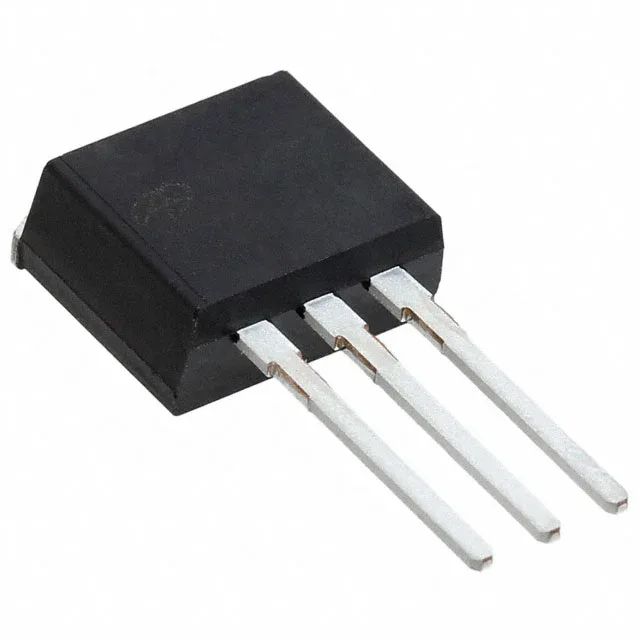

Alpha & Omega Semiconductor Inc. AOW11N60
MPNAOW11N60
Active
MOSFET N-CH 600V 11A TO262
$1.63Ref. price · indicative, final on quote
PackagingTO-262-3 Long Leads, I²Pak, TO-262AA
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | N-Channel |
| Mounting | Through Hole |
| Drain to source voltage | 600 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 11A (Tc) |
| Power dissipation | 272W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tube |
| Vgs | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Vgs(th) (Max) @ id | 4.5V @ 250µA |
| Rds on (Max) @ id, vgs | 700mOhm @ 5.5A, 10V |
| Gate charge (Qg) (Max) @ vgs | 37 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 1990 pF @ 25 V |
