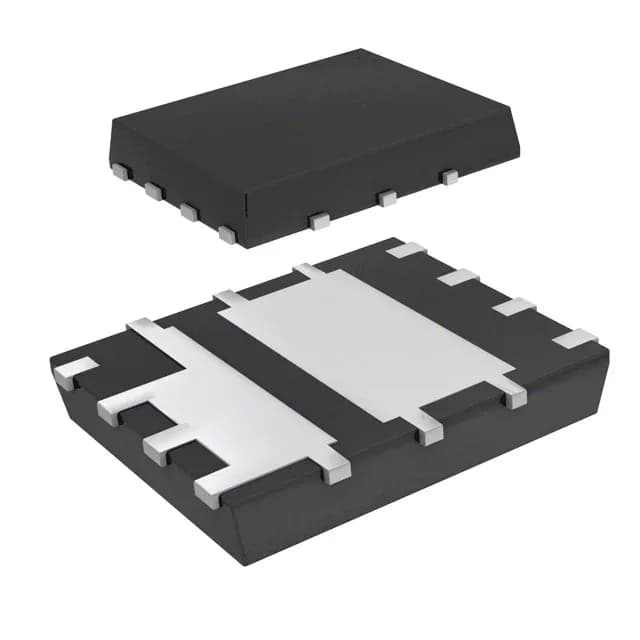

MOSFET 2N-CH 30V 8DFN
$1.2000Ref. price · indicative, final on quote
Packaging8-PowerSMD, Flat Leads
StockContact for availability
MOQ1 pcs
- 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
- Date & lot codes on quoteStated per line before you commit; label photos on request.
- MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Mounting type | Surface Mount |
| Drain to source voltage | 30V |
| Current - continuous drain (Id) @ 25°C | 18.5A (Ta), 49A (Tc), 30A (Ta), 85A (Tc) |
| Power - max | 3.1W (Ta), 21W (Tc), 3.1W (Ta), 45W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) Asymmetrical |
| Case | 8-PowerSMD, Flat Leads |
| Vgs(th) (Max) @ id | 2.1V @ 250µA, 1.9V @ 250µA |
| Rds on (Max) @ id, vgs | 5.3mOhm @ 20A, 10V, 2mOhm @ 20A, 10V |
| Gate charge (Qg) (Max) @ vgs | 20nC @ 10V, 52nC @ 10V |
| Input capacitance (Ciss) (Max) @ vds | 820pF @ 15V, 2555pF @ 15V |
