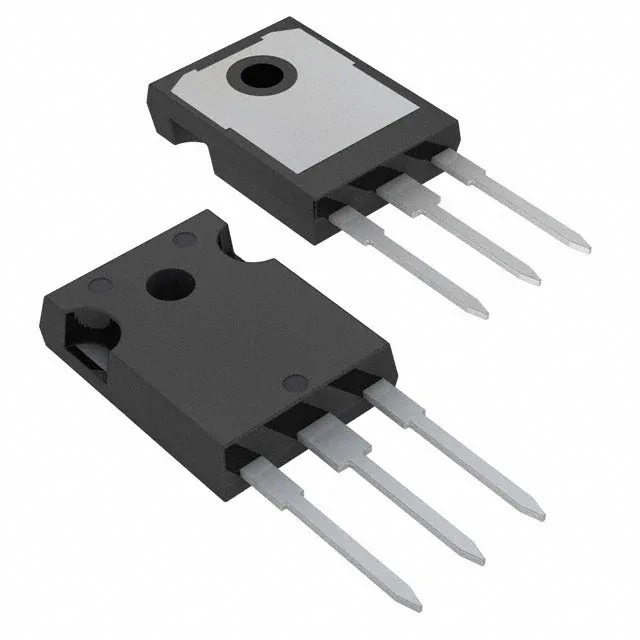

Alpha & Omega Semiconductor Inc. AOK40B60D1
MPNAOK40B60D1
Active
IGBT 600V 80A 278W TO247
$4.12Ref. price · indicative, final on quote
PackagingTO-247-3
RoHSROHS3 Compliant
SeriesAlpha IGBT™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Alpha IGBT™ |
| Input type | Standard |
| Mounting | Through Hole |
| Voltage - collector emitter breakdown | 600 V |
| Current - collector (Ic) | 80 A |
| Current - collector pulsed | 140 A |
| Power - max | 278 W |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tube |
| Gate charge | 45 nC |
| Case | TO-247-3 |
| Test condition | 400V, 40A, 7.5Ohm, 15V |
| Switching energy | 1.55mJ (on), 300µJ (off) |
| Td (on/off) @ 25°C | 29ns/74ns |
| Vce(on) (Max) @ vge, ic | 2.4V @ 15V, 40A |
| Reverse recovery time | 127 ns |
