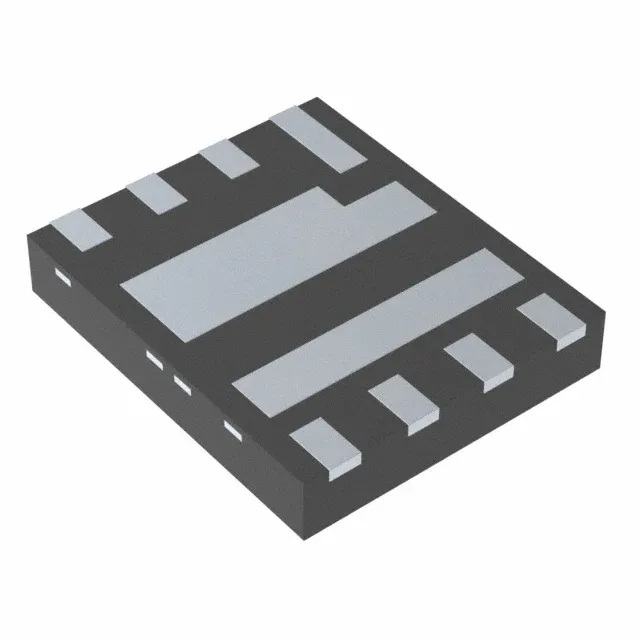

MOSFET 2N-CH 30V 22A/85A 8DFN
$2.15Ref. price · indicative, final on quote
Packaging8-VDFN Exposed Pad
StockContact for availability
MOQ1 pcs
- 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
- Date & lot codes on quoteStated per line before you commit; label photos on request.
- MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | AlphaMOS |
| Mounting type | Surface Mount |
| Drain to source voltage | 30V |
| Current - continuous drain (Id) @ 25°C | 22A (Tc), 85A (Tc) |
| Power - max | 24W, 75W |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) Asymmetrical |
| Case | 8-VDFN Exposed Pad |
| Vgs(th) (Max) @ id | 2.1V @ 250µA, 1.9V @ 250µA |
| Rds on (Max) @ id, vgs | 4.3mOhm @ 20A, 10V, 0.83mOhm @ 30A, 10V |
| Gate charge (Qg) (Max) @ vgs | 15nC @ 4.5V, 65nC @ 4.5V |
| Input capacitance (Ciss) (Max) @ vds | 1075pF @ 15V, 5560pF @ 15V |
