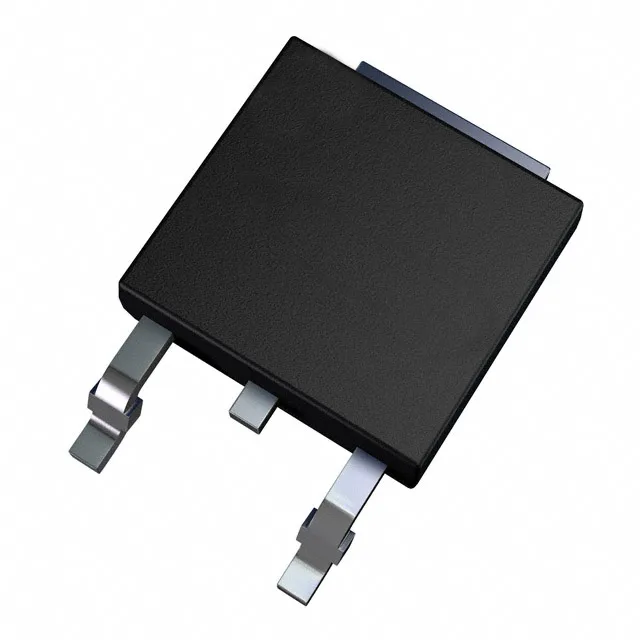

AOD256
Alpha & Omega Semiconductor Inc.
MOSFET N-CH 150V 3A/19A TO252
[IN STOCK] In Stock: 23 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 150 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 3A (Ta), 19A (Tc) |
| Power dissipation | 2.5W (Ta), 83W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Vgs(th) (Max) @ id | 2.8V @ 250µA |
| Rds on (Max) @ id, vgs | 85mOhm @ 10A, 10V |
| Gate charge (Qg) (Max) @ vgs | 22 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 1165 pF @ 75 V |
