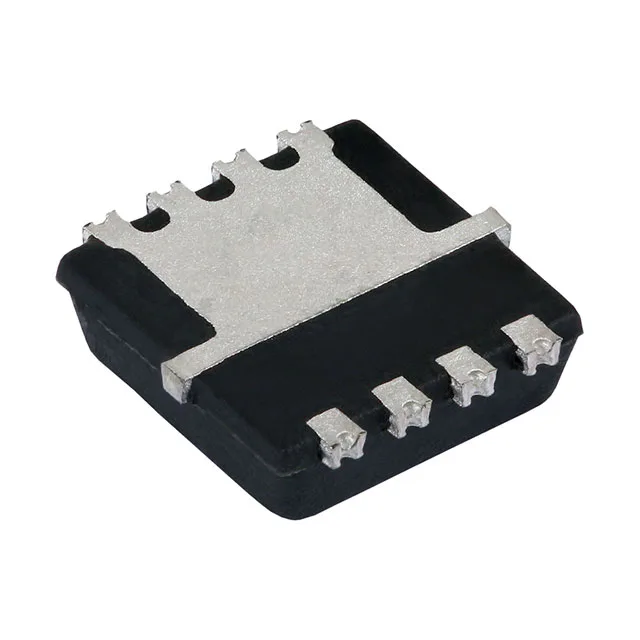

Vishay SQSA84CENW-T1_GE3
MPNSQSA84CENW-T1_GE3
End of Life
AUTOMOTIVE N-CHANNEL 80 V (D-S)
$0.80088Price · pay online now
PackagingPowerPAK® 1212-8W
RoHSROHS3 Compliant
SeriesTrenchFET®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TrenchFET® |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 80 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 16A (Ta) |
| Power dissipation | 27W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Qualification | AEC-Q101 |
| Case | PowerPAK® 1212-8W |
| Vgs(th) (Max) @ id | 2.5V @ 250µA |
| Rds on (Max) @ id, vgs | 32mOhm @ 3.5A, 10V |
| Gate charge (Qg) (Max) @ vgs | 22 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 1050 pF @ 25 V |
