600 V, 40 A N-channel — the TO-220 Full Pack power switch

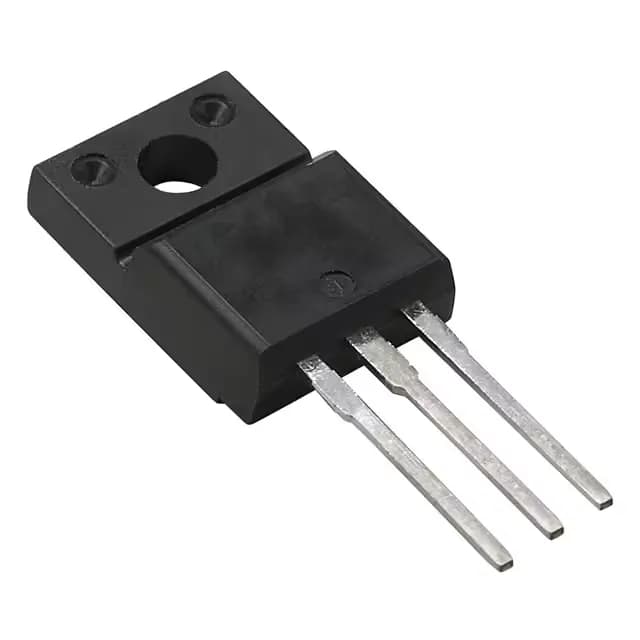

The Vishay SIHF065N60E-GE3 is a 600 V, 40 A N-channel power MOSFET from the E series, built on a standard planar stripe technology. It is specified for hard-switching topologies in AC-DC power supplies, DC-DC converters, and motor-drive inverters where the through-hole TO-220 Full Pack package provides a fully isolated backside tab — no separate insulating pad or washer needed when bolting to a heatsink. The 65 mOhm typical on-resistance at 10 V gate drive keeps conduction losses manageable at the 40 A continuous rating, though the 39 W power dissipation ceiling in the Full Pack means the thermal path through the tab is the practical limit for sustained high-current operation.
Gate charge and switching — 74 nC at 10 V
Total gate charge is 74 nC at 10 V, which sets the drive current needed for a given switching frequency. A 100 kHz hard-switched converter requires roughly 7.4 mA average gate drive from the controller — well within the capability of most half-bridge gate-drive ICs. The ±30 V maximum gate-source rating provides margin for gate-drive overshoot in noisy environments, though the recommended drive voltage for rated Rds(on) is 10 V.
Temperature range and thermal design
The TO-220 Full Pack's junction-to-case thermal resistance is higher than a standard TO-220 because the plastic encapsulates the die on both sides, so the heatsink interface must be sized accordingly.
