Vishay DG1409EEN-T1-GE4
MPNDG1409EEN-T1-GE4
End of Life
IC MUX DUAL 4:1 4.2OHM 16QFN
$5.16372Price · pay online now

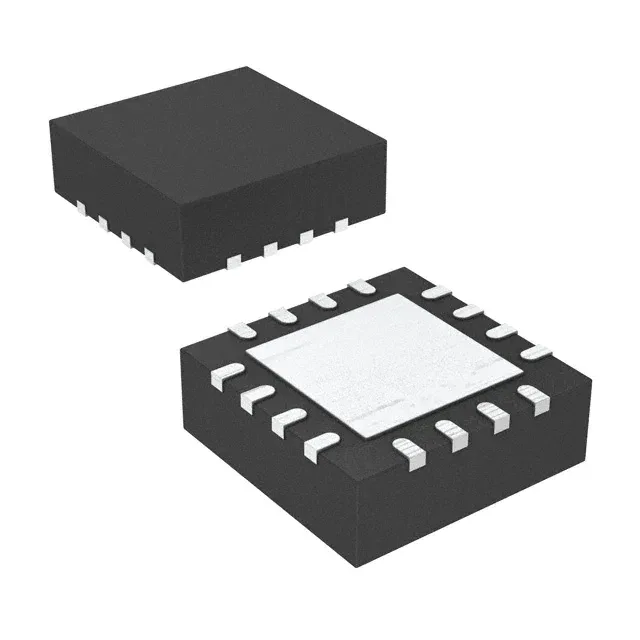

Packaging16-VQFN Exposed Pad
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Voltage - supply, dual (V±) | ±4.5V ~ 16.5V |
| Voltage - supply, single (V+) | 4.5V ~ 24V |
| Current - leakage (IS(off)) | 550pA |
| Operating temperature | -40°C ~ 125°C (TA) |
| -3db bandwidth | 90MHz |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Crosstalk | -64dB @ 1MHz |
| Case | 16-VQFN Exposed Pad |
| Switch circuit | DP4T |
| Charge injection | 103pC |
| Number of circuits | 1 |
| On-State resistance | 4.2Ohm |
| Switch time (Ton, toff) | 130ns, 105ns |
| Multiplexer (Demultiplexer circuit) | 4:1 |
| Channel-to-Channel matching (ΔRon) | 270mOhm |
| Channel capacitance (CS(off), CD(off)) | 13pF, 43pF |
