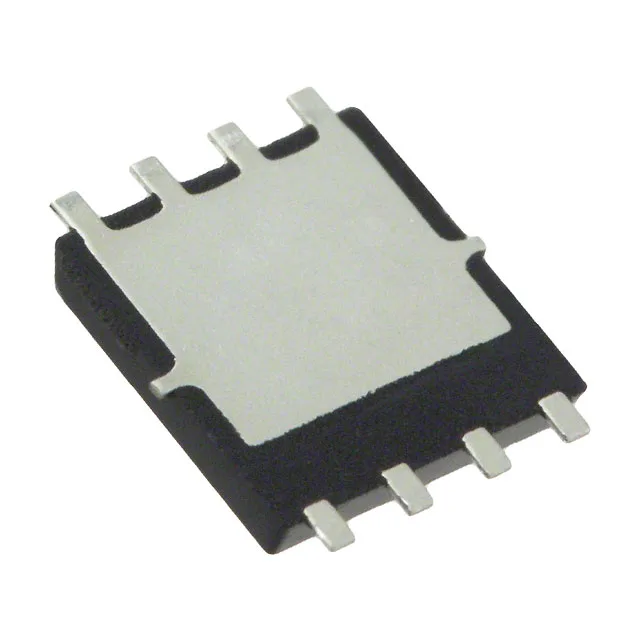

TPN13008NH,L1Q - Toshiba Semiconductor
MPNTPN13008NH,L1Q
End of Life
MOSFET N-CH 80V 18A 8TSON
$1.06Ref. price · indicative, final on quote
Packaging8-PowerVDFN
RoHSRoHS Compliant
SeriesU-MOSVIII-H
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | U-MOSVIII-H |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 80 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 18A (Tc) |
| Power dissipation | 700mW (Ta), 42W (Tc) |
| Operating temperature | 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | 8-PowerVDFN |
| Vgs(th) (Max) @ id | 4V @ 200µA |
| Rds on (Max) @ id, vgs | 13.3mOhm @ 9A, 10V |
| Gate charge (Qg) (Max) @ vgs | 18 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 1600 pF @ 40 V |
