Toshiba Semiconductor TCK111G,LF
MPNTCK111G,LF
End of Life
IC PWR SWITCH N-CHAN 1:1 6WCSP
$0.76Ref. price · indicative, final on quote

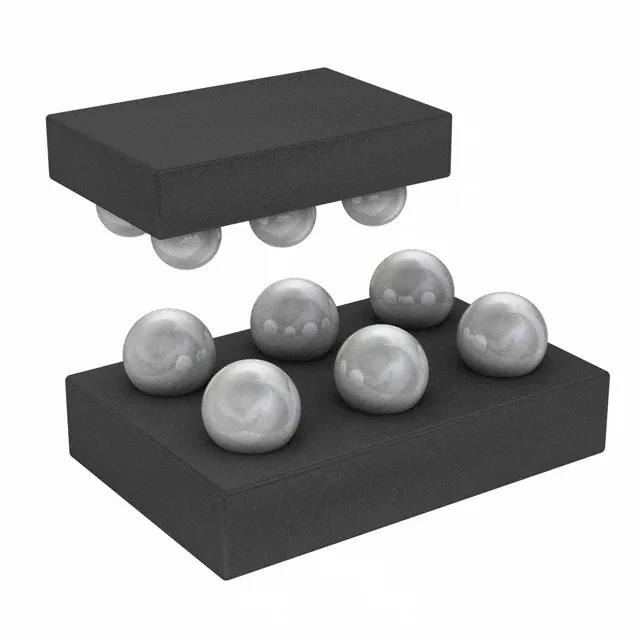

Packaging6-UFBGA, WLCSP
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Input type | Non-Inverting |
| Output type | N-Channel |
| Type | General Purpose |
| Mounting | Surface Mount |
| Voltage - load | 1.1V ~ 5.5V |
| Voltage - supply (Vcc (Vdd)) | Not Required |
| Output current | 3A |
| I/O channels | 1 |
| Interface | On/Off |
| Operating temperature | -40°C ~ 85°C (TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Slew Rate Controlled |
| Rds on | 8.3mOhm |
| Case | 6-UFBGA, WLCSP |
| Fault protection | Over Temperature, Reverse Current |
| Output configuration | High Side |
| Ratio - Input:Output | 1:1 |
