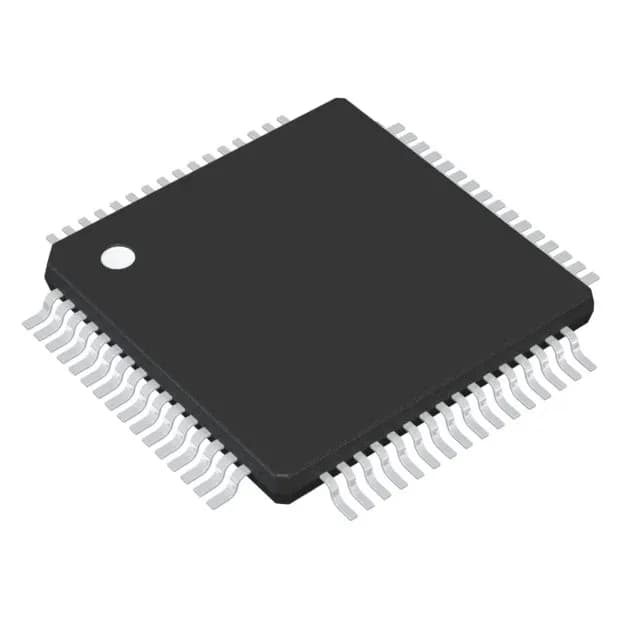

TM4C1231E6PMI
Texas Instruments
-40°C~85°C(TA)CANbus, I²C, IrDA, Microwire, SPI, SSI, UART/USARTBrown-out Detect/Reset, DMA, POR, WDT
Ref. price$11.3100
Lead time on requestGet quote ›
Texas Instruments TM4C Series
5 variants · Texas Instruments
About the Texas Instruments Texas Instruments TM4C Series series
The Texas Instruments Texas Instruments TM4C Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common core processor of ARM® Cortex®-M4F, core size of 32-Bit Single-Core and EEPROM size of 2K x 8. Variants differ by case, connectivity and data converters, so you can match the exact case your application requires using the selection guide below. All listed Texas Instruments TM4C Series part numbers are active and orderable.
Select a variant by
- Case
- 64-LQFP · 100-LQFP
- Connectivity
- CANbus, I2C, IrDA, Microwire, QEI, SPI, SSI, UART/USART, USB OTG · CANbus, I2C, IrDA, Microwire, SPI, SSI, UART/USART, USB · CANbus, I²C, IrDA, Microwire, SPI, SSI, UART/USART · CANbus, I²C, IrDA, Microwire, SPI, SSI, UART/USART, USB · CANbus, I²C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG
- Data converters
- A/D 12x12b · A/D 22x12b
- Number of i (O)
- 43 · 69
- Operating temperature
- -40°C ~ 85°C (TA) · -40°C~85°C(TA)
- Peripherals
- Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT · Brown-out Detect/Reset, DMA, POR, WDT
- Program memory size
- 64KB (64K x 8) · 128KB (128K x 8) · 256KB (256K x 8)
- RAM size
- 24K x 8 · 32K x 8
Variant comparison
| Parameter | TM4C1231E6PMI | TM4C1233E6PMI | TM4C1233H6PMI | TM4C1237D5PMI | TM4C123GH6PZI7 |
|---|---|---|---|---|---|
| Case | 64-LQFP | 64-LQFP | 64-LQFP | 64-LQFP | 100-LQFP |
| Connectivity | CANbus, I²C, IrDA, Microwire, SPI, SSI, UART/USART | CANbus, I2C, IrDA, Microwire, SPI, SSI, UART/USART, USB | CANbus, I²C, IrDA, Microwire, SPI, SSI, UART/USART, USB | CANbus, I²C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG | CANbus, I2C, IrDA, Microwire, QEI, SPI, SSI, UART/USART, USB OTG |
| Data converters | A/D 22x12b | A/D 12x12b | A/D 12x12b | A/D 12x12b | A/D 22x12b |
| Number of i (O) | 43 | 43 | 43 | 43 | 69 |
| Operating temperature | -40°C~85°C(TA) | -40°C ~ 85°C (TA) | -40°C~85°C(TA) | -40°C~85°C(TA) | -40°C ~ 85°C (TA) |
| Peripherals | Brown-out Detect/Reset, DMA, POR, WDT | Brown-out Detect/Reset, DMA, POR, WDT | Brown-out Detect/Reset, DMA, POR, WDT | Brown-out Detect/Reset, DMA, POR, WDT | Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT |
| Program memory size | 128KB (128K x 8) | 128KB (128K x 8) | 256KB (256K x 8) | 64KB (64K x 8) | 256KB (256K x 8) |
| RAM size | 32K x 8 | 32K x 8 | 32K x 8 | 24K x 8 | 32K x 8 |
Shared specifications
- Core processor
- ARM® Cortex®-M4F
- Core size
- 32-Bit Single-Core
- EEPROM size
- 2K x 8
- Mounting type
- Surface Mount
- Oscillator type
- Internal
- Package
- Tray
- Program memory type
- FLASH
- Speed
- 80MHz
- Voltage - supply (Vcc (Vdd))
- 1.08V ~ 3.63V
