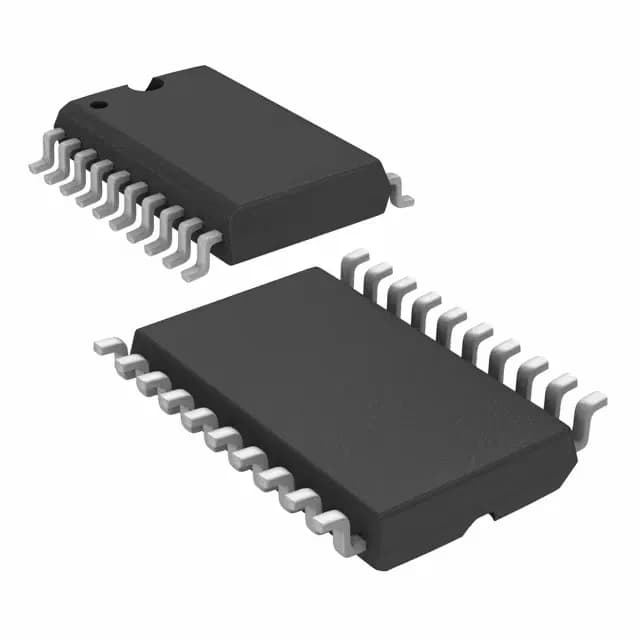

MAX3222CDWR
Texas Instruments
Tape & Reel (TR); Cut Tape (CT)0°C~70°CTransceiver
Ref. price$2.1800
Lead time on requestGet quote ›
Texas Instruments MAX322 Series
37 variants · Texas Instruments
About the Texas Instruments Texas Instruments MAX322 Series series
The Texas Instruments Texas Instruments MAX322 Series series groups 37 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common duplex of Full, mounting type of Surface Mount and protocol of RS232. Variants differ by case, data rate and number of drivers (Receivers), so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 16-TSSOP (0.173\", 4.40mm Width) · 20-SOIC (0.295\", 7.50mm Width) · 20-SSOP (0.209\", 5.30mm Width) · 20-TSSOP (0.173\", 4.40mm Width)
- Data rate
- 250kbps · 500kbps
- Number of drivers (Receivers)
- 1/1 · 2/2
- Operating temperature
- -40°C~85°C · 0°C ~ 70°C · 0°C~70°C
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
- Receiver hysteresis
- 300 mV · 500 mV
Variant comparison

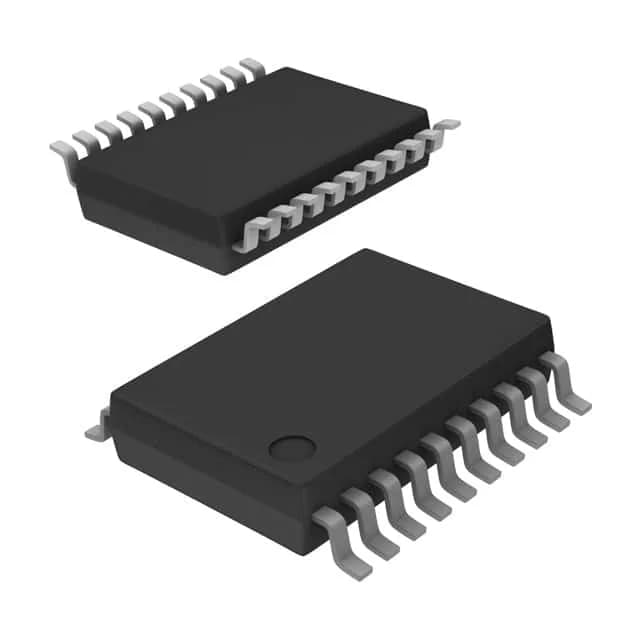

| Parameter | MAX3222CDWR | MAX3222CPWR | MAX3222ECDB | MAX3222ECPWR | MAX3222EIDW | MAX3222EIPWR |
|---|---|---|---|---|---|---|
| Case | 20-SOIC (0.295\", 7.50mm Width) | 20-TSSOP (0.173\", 4.40mm Width) | 20-SSOP (0.209\", 5.30mm Width) | 20-TSSOP (0.173\", 4.40mm Width) | 20-SOIC (0.295\", 7.50mm Width) | 20-TSSOP (0.173\", 4.40mm Width) |
| Data rate | 250kbps | 250kbps | 500kbps | 500kbps | 500kbps | 500kbps |
| Number of drivers (Receivers) | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 |
| Operating temperature | 0°C~70°C | 0°C~70°C | 0°C~70°C | 0°C~70°C | -40°C~85°C | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube | Tape & Reel (TR); Cut Tape (CT) | Tube | Tape & Reel (TR); Cut Tape (CT) |
| Receiver hysteresis | 300 mV | 300 mV | 300 mV | 300 mV | 300 mV | 300 mV |
Shared specifications
- Duplex
- Full
- Mounting type
- Surface Mount
- Protocol
- RS232
- Type
- Transceiver
- Voltage
- 3V ~ 5.5V
Request a quote on any Texas Instruments MAX322 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Texas Instruments Texas Instruments MAX322 Series variants differ?
- Texas Instruments MAX322 Series part numbers differ by case, data rate, number of drivers (Receivers) and operating temperature. Use the selection guide above to pick by case.
- How many Texas Instruments Texas Instruments MAX322 Series part numbers are listed?
- 37 Texas Instruments Texas Instruments MAX322 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Texas Instruments Texas Instruments MAX322 Series?
- Request a quote (RFQ) for any Texas Instruments MAX322 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
