About the Texas Instruments LMX2 Clock Timing Series

ICBOMS is a China IC distributor and semiconductor supplier — an independent, Shenzhen-based overseas procurement agent for Texas Instruments LMX2 Clock Timing Series components — sourcing Texas Instruments LMX2 Clock Timing Series parts new and original only, across the authorized and vetted independent channel, with every lot authenticity-screened before shipment. The Texas Instruments LMX2 Clock Timing Series series groups 7 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting of Surface Mount, number of circuits of 1 and operating temperature of -40°C ~ 85°C. Variants differ by case, differential - Input:Output and divider (Multiplier), so you can match the exact case your application requires using the selection guide below. All listed Texas Instruments LMX2 Clock Timing Series part numbers are active and orderable.

Select a variant by

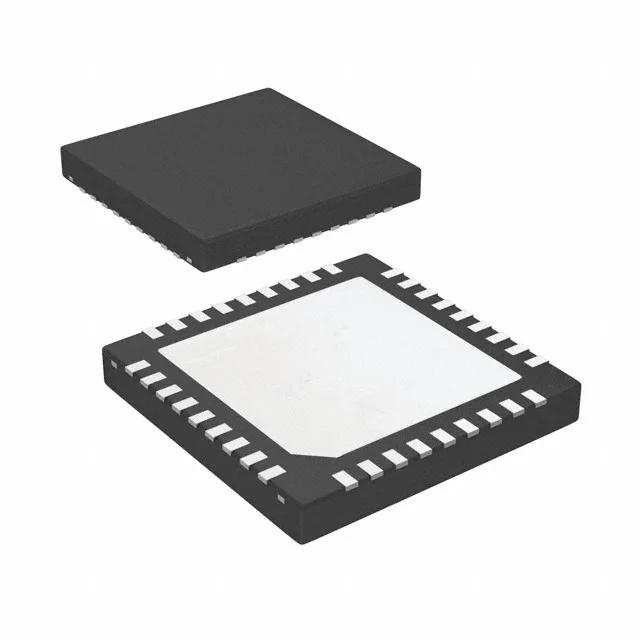

Case: 24-TFQFN, CSP · 36-WFQFN Exposed Pad
Differential - Input:Output: No/No · Yes/No
Divider (Multiplier): Yes/No · Yes/Yes
Frequency - max: 1.636GHz · 1.866GHz · 2.24GHz · 2.274GHz · 2.5GHz, 550MHz · 2.79GHz
Input: Clock · CMOS, TTL
Output: Clock · CMOS
Package: Bulk · Tape & Reel (TR); Cut Tape (CT)
PLL: Yes · Yes with Bypass

Shared specifications

Mounting: Surface Mount
Number of circuits: 1
Operating temperature: -40°C ~ 85°C

Variant comparison

Parameter	LMX2354SLBX	LMX2531LQ1570E/NOPB	LMX2531LQ1742/NOPB	LMX2531LQ2080E/NOPB	LMX2531LQ2570E/NOPB	LMX2541SQE2060E/NOPB
Case	24-TFQFN, CSP	36-WFQFN Exposed Pad	36-WFQFN Exposed Pad	36-WFQFN Exposed Pad	36-WFQFN Exposed Pad	36-WFQFN Exposed Pad
Differential - Input:Output	Yes/No	No/No	No/No	No/No	No/No	No/No
Divider (Multiplier)	Yes/Yes	Yes/No	Yes/No	Yes/No	Yes/No	Yes/No
Frequency - max	2.5GHz, 550MHz	1.636GHz	1.866GHz	2.274GHz	2.79GHz	2.24GHz
Input	CMOS, TTL	Clock	Clock	Clock	Clock	Clock
Output	CMOS	CMOS	CMOS	CMOS	CMOS	Clock
Package	Bulk	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)
PLL	Yes with Bypass	Yes	Yes	Yes	Yes	Yes

Request a quote on any Texas Instruments LMX2 Clock Timing Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
