LMK1D1208IRHAT
Texas Instruments
Tape & Reel (TR)-40°C~105°C(TA)2 GHz
Ref. price$12.5920
Lead time on requestGet quote ›
Texas Instruments LMK1 Series
6 variants · Texas Instruments
About the Texas Instruments Texas Instruments LMK1 Series series
The Texas Instruments Texas Instruments LMK1 Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting type of Surface Mount and voltage of 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V. Variants differ by case, differential - Input:Output and frequency, so you can match the exact case your application requires using the selection guide below. All listed Texas Instruments LMK1 Series part numbers are active and orderable.
Select a variant by
- Case
- 8-TSSOP (0.173\", 4.40mm Width) · 14-TSSOP (0.173\", 4.40mm Width) · 16-VFQFN Exposed Pad · 40-VFQFN Exposed Pad
- Differential - Input:Output
- No/No · Yes/Yes
- Frequency
- 2 GHz · 250 MHz
- Input
- CML, HCSL, LVCMOS, LVDS, LVPECL · LVCMOS
- Number of circuits
- 1 · 2
- Operating temperature
- -40°C~105°C · -40°C~105°C(TA) · -40°C~125°C(TA)
- Output
- LVCMOS · LVDS
- Package
- Tape & Reel (TR) · Tape & Reel (TR); Cut Tape (CT)
Variant comparison

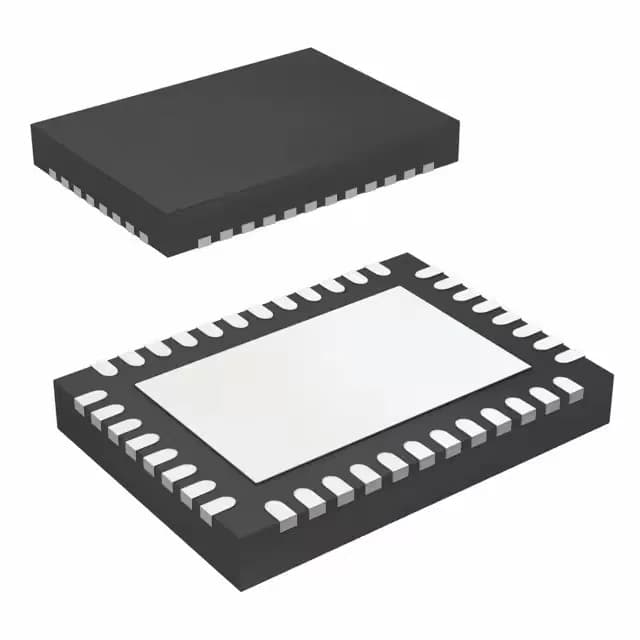

| Parameter | LMK1D1208IRHAT | LMK1D1208PRHAR | LMK1C1102PWR | LMK1C1103PWR | LMK1C1106PWR | LMK1D2102RGTR |
|---|---|---|---|---|---|---|
| Case | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 8-TSSOP (0.173\", 4.40mm Width) | 8-TSSOP (0.173\", 4.40mm Width) | 14-TSSOP (0.173\", 4.40mm Width) | 16-VFQFN Exposed Pad |
| Differential - Input:Output | Yes/Yes | Yes/Yes | No/No | No/No | No/No | Yes/Yes |
| Frequency | 2 GHz | 2 GHz | 250 MHz | 250 MHz | 250 MHz | 2 GHz |
| Input | CML, HCSL, LVCMOS, LVDS, LVPECL | CML, HCSL, LVCMOS, LVDS, LVPECL | LVCMOS | LVCMOS | LVCMOS | CML, HCSL, LVCMOS, LVDS, LVPECL |
| Number of circuits | 1 | 1 | 1 | 1 | 1 | 2 |
| Operating temperature | -40°C~105°C(TA) | -40°C~105°C(TA) | -40°C~125°C(TA) | -40°C~125°C(TA) | -40°C~105°C | -40°C~105°C(TA) |
| Output | LVDS | LVDS | LVCMOS | LVCMOS | LVCMOS | LVDS |
| Package | Tape & Reel (TR) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
Shared specifications
- Mounting type
- Surface Mount
- Voltage
- 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V
Request a quote on any Texas Instruments LMK1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Texas Instruments Texas Instruments LMK1 Series variants differ?
- Texas Instruments LMK1 Series part numbers differ by case, differential - Input:Output, frequency and input. Use the selection guide above to pick by case.
- How many Texas Instruments Texas Instruments LMK1 Series part numbers are listed?
- 6 Texas Instruments Texas Instruments LMK1 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Texas Instruments Texas Instruments LMK1 Series?
- Request a quote (RFQ) for any Texas Instruments LMK1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
