CD4013BE
Texas Instruments
Tube24 MHzSet(Preset) and Reset
Ref. price$0.6000
Lead time on requestGet quote ›
Texas Instruments CD40 Series
22 variants · Texas Instruments
About the Texas Instruments Texas Instruments CD40 Series series
The Texas Instruments Texas Instruments CD40 Series series groups 22 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by package, case and frequency, so you can match the exact package your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Texas Instruments CD40 Series variants and discontinued ones from a single page.
Select a variant by
- Package
- Bulk · Tape & Reel (TR); Cut Tape (CT) · Tube
- Case
- 14-DIP (0.300\", 7.62mm) · 14-SOIC (0.154\", 3.90mm Width) · 14-TSSOP (0.173\", 4.40mm Width) · 16-DIP (0.300\", 7.62mm) · 16-SOIC (0.154\", 3.90mm Width) · 16-SOIC (0.209\", 5.30mm Width) · 16-TSSOP (0.173\", 4.40mm Width)
- Frequency
- 14 MHz · 16 MHz · 24 MHz
- Function
- Master Reset · Set(Preset) and Reset
- Max propagation delay @ v, max CL
- 90ns @ 15V, 50pF · 100ns @ 15V, 50pF · 120ns @ 15V, 50pF
- Mounting type
- Surface Mount · Through Hole
- Number of bits per element
- 1 · 4 · 6
Variant comparison

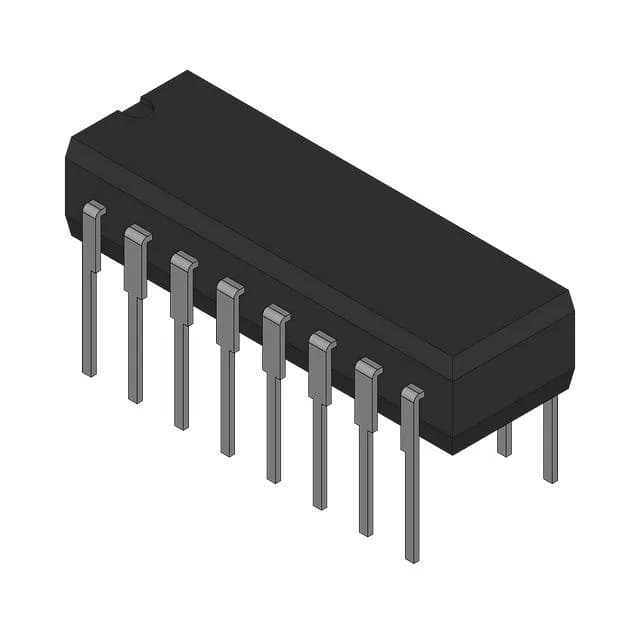

| Parameter | CD4013BE | CD4013BM96 | CD4013BMT | CD4013BPWR | CD40174BE | CD40174BF3A |
|---|---|---|---|---|---|---|
| Package | Tube | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube | Bulk |
| Case | 14-DIP (0.300\", 7.62mm) | 14-SOIC (0.154\", 3.90mm Width) | 14-SOIC (0.154\", 3.90mm Width) | 14-TSSOP (0.173\", 4.40mm Width) | 16-DIP (0.300\", 7.62mm) | — |
| Frequency | 24 MHz | 24 MHz | 24 MHz | 24 MHz | 16 MHz | — |
| Function | Set(Preset) and Reset | Set(Preset) and Reset | Set(Preset) and Reset | Set(Preset) and Reset | Master Reset | — |
| Max propagation delay @ v, max CL | 90ns @ 15V, 50pF | 90ns @ 15V, 50pF | 90ns @ 15V, 50pF | 90ns @ 15V, 50pF | 100ns @ 15V, 50pF | — |
| Mounting type | Through Hole | Surface Mount | Surface Mount | Surface Mount | Through Hole | — |
| Number of bits per element | 1 | 1 | 1 | 1 | 6 | — |
Request a quote on any Texas Instruments CD40 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Texas Instruments Texas Instruments CD40 Series variants differ?
- Texas Instruments CD40 Series part numbers differ by package, case, frequency and function. Use the selection guide above to pick by package.
- How many Texas Instruments Texas Instruments CD40 Series part numbers are listed?
- 22 Texas Instruments Texas Instruments CD40 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Texas Instruments Texas Instruments CD40 Series?
- Request a quote (RFQ) for any Texas Instruments CD40 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
