Texas Instruments

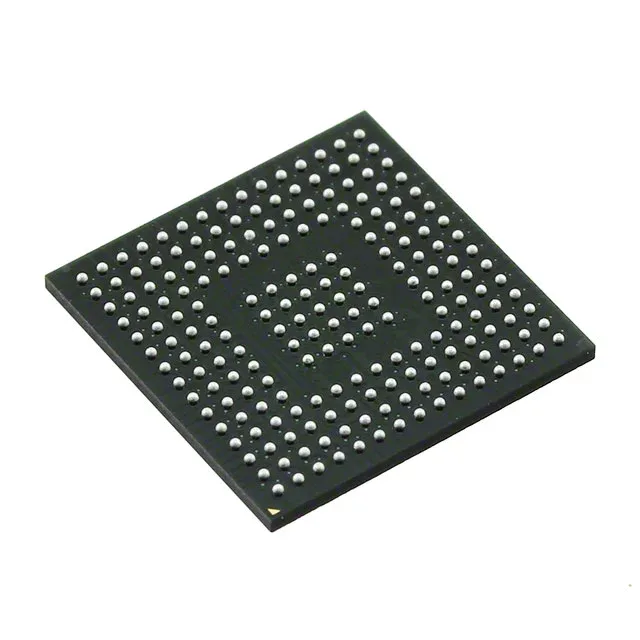

DLPC3437CZEZ DLP Display Controller, 188 mA, 201-NFBGA

MPNDLPC3437CZEZ
End of Life

Texas Instruments DLPC3437CZEZ DLP display controller, 188 mA supply, I²C and Parallel interface, 1.045V-1.155V core, -30°C to 85°C, 201-NFBGA (13x13) package, ROHS3 compliant.

$33.16Ref. price · indicative, final on quote
DLPC3437CZEZ datasheet
Packaging201-VFBGA
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

DLPC3437CZEZ Technical Specifications
ParameterValue
Display typeDLP
Mounting typeSurface Mount
Voltage1.045V ~ 1.155V
Current - supply188 mA
InterfaceI²C, Parallel
Operating temperature-30°C ~ 85°C
PackageBulk
Case201-VFBGA

Product details

Supply current and thermal reality

At 188 mA typical supply current, the DLPC3437CZEZ is not a high-current part, but in a dense 201-ball BGA with no exposed thermal pad, the heat has to escape through the board. The 13x13 mm NFBGA package relies on the PCB's copper planes and via stitching to the ground and power balls. A four-layer board with a solid ground plane under the BGA is the baseline; two-layer designs will struggle to keep the junction below the 85°C max.

Lifecycle and sourcing posture

The DLPC3437CZEZ carries an Active product status and is ROHS3 compliant.

Frequently asked questions

What is the difference between DLPC3437CZEZ and DLPC3435CZEZ?

Both are DLP display controllers from TI in the same 201-NFBGA package family, but the DLPC3437CZEZ targets a different DMD resolution tier. The DLPC3435CZEZ is paired with lower-resolution DMDs, while the DLPC3437CZEZ supports higher-resolution panels. Pin compatibility varies by the DMD interface — verify the specific DMD pairing before substitution.

What DMD is compatible with DLPC3437CZEZ?

The DLPC3437CZEZ is designed to work with TI's DLP3010LC DMD (720p resolution) as part of the DLP3010 chipset. It drives the DMD through the parallel interface and handles the micromirror timing and frame sequencing.

Are there any equivalent parts to DLPC3437CZEZ?

Within TI's DLP controller family, the DLPC3435CZEZ is a close sibling but targets lower DMD resolutions. No direct pin-compatible second source from another manufacturer exists; the DLP chipset architecture is proprietary to TI.
