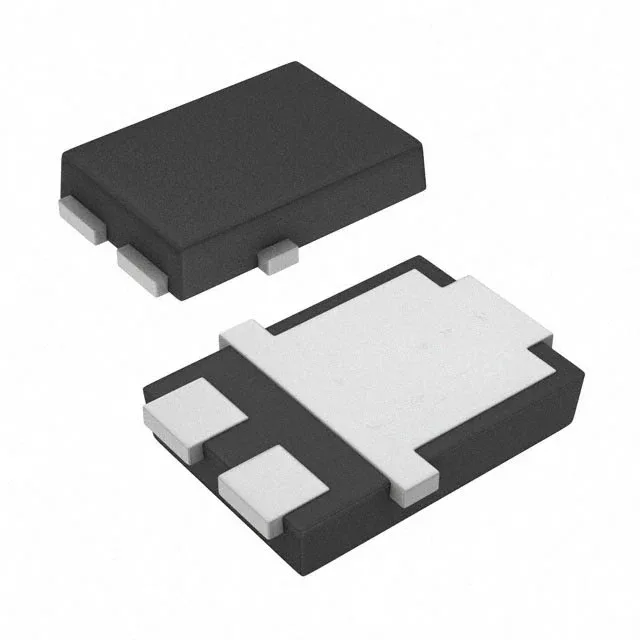

Taiwan Semiconductor Corporation TSUP5M45SH S1G
MPNTSUP5M45SH S1G
Active
DIODE SCHOTTKY 45V 5A SMPC4.6U
$1.53Ref. price · indicative, final on quote
PackagingTO-277, 3-PowerDFN
RoHSROHS3 Compliant
SeriesAutomotive, AEC-Q101
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Automotive, AEC-Q101 |
| Diode type | Schottky |
| Mounting | Surface Mount |
| Voltage - DC reverse (Vr) | 45 V |
| Voltage - forward (Vf) (Max) @ if | 600 mV @ 5 A |
| Current - reverse leakage @ vr | 150 µA @ 45 V |
| Current - average rectified | 5A |
| Operating temperature - junction | -55°C ~ 175°C |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | TO-277, 3-PowerDFN |
| Capacitance @ vr, | 589pF @ 4V, 1MHz |
