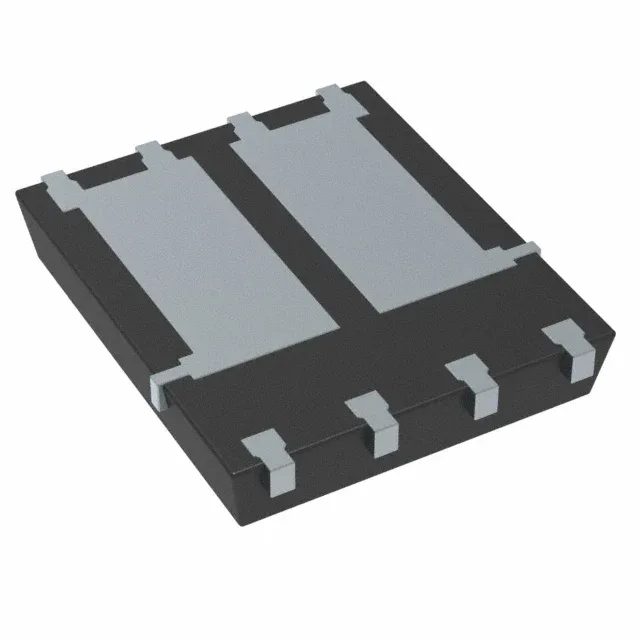

Taiwan Semiconductor Corporation TSM300NB06DCR RLG
MPNTSM300NB06DCR RLG
Active
DUAL N-CHANNEL POWER MOSFET 60V,
$2.24Ref. price · indicative, final on quote
Packaging8-PowerTDFN
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | 2 N-Channel (Dual) |
| Mounting | Surface Mount |
| Drain to source voltage | 60V |
| Current - continuous drain (Id) @ 25°C | 6A (Ta), 25A (Tc) |
| Power - max | 2W (Ta), 40W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| FET feature | Standard |
| Case | 8-PowerTDFN |
| Vgs(th) (Max) @ id | 4.5V @ 250µA |
| Rds on (Max) @ id, vgs | 30mOhm @ 6A, 10V |
| Gate charge (Qg) (Max) @ vgs | 17nC @ 10V |
| Input capacitance (Ciss) (Max) @ vds | 1079pF @ 30V |
