STMicroelectronics TSV851ICT, General Purpose Op Amp, 1 Circuit, Rail-to-Rail, 1.3 MHz GBW, 0.7 V/µs Slew Rate, 2.5-5.5 V Supply, SC-70-5, -40 to 125°C.
| Parameter | Value |
|---|---|
| Output type | Rail-to-Rail |
| Mounting | Surface Mount |
| Amplifier type | General Purpose |
| Voltage - input offset | 4 mV |
| Voltage - supply span | 5.5 V |
| Current - supply | 130µA |
| Current - input bias | 27 nA |
| Current - output (Channel) | 70 mA |
| Operating temperature | -40°C ~ 125°C |
| Gain bandwidth product | 1.3 MHz |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Slew rate | 0.7V/µs |
| Case | 5-TSSOP, SC-70-5, SOT-353 |
| Number of circuits | 1 |

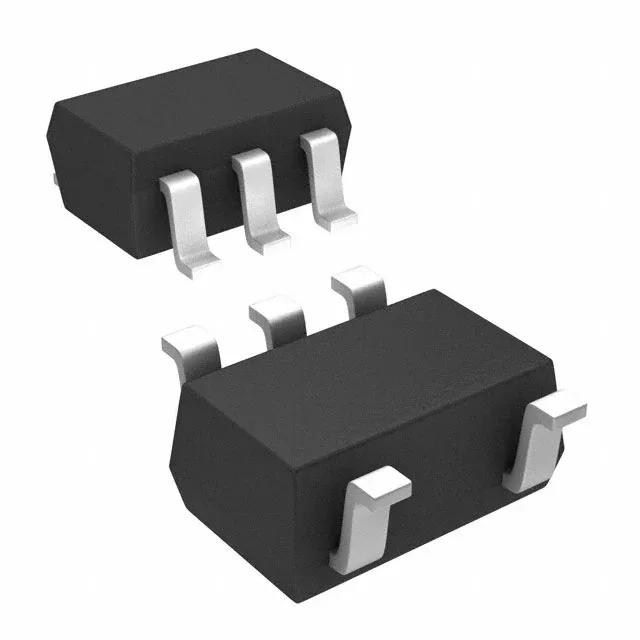

Housed in a 5-lead SC-70-5 (also known as SOT-353), the TSV851ICT takes up minimal board area. The surface-mount package is suited for automated pick-and-place assembly. Pinout is standard for a single op amp in this footprint.
ROHS3 compliant.
1.3 MHz. That is the unity-gain bandwidth; usable gain-bandwidth scales linearly with closed-loop gain, so expect roughly 130 kHz at a gain of 10.
The evidence does not list TSV851ILT or confirm a direct replacement relationship. The TSV851ICT is the same base die in a different tape-and-reel packaging option. Check the suffix for reel quantity differences rather than functional changes.
