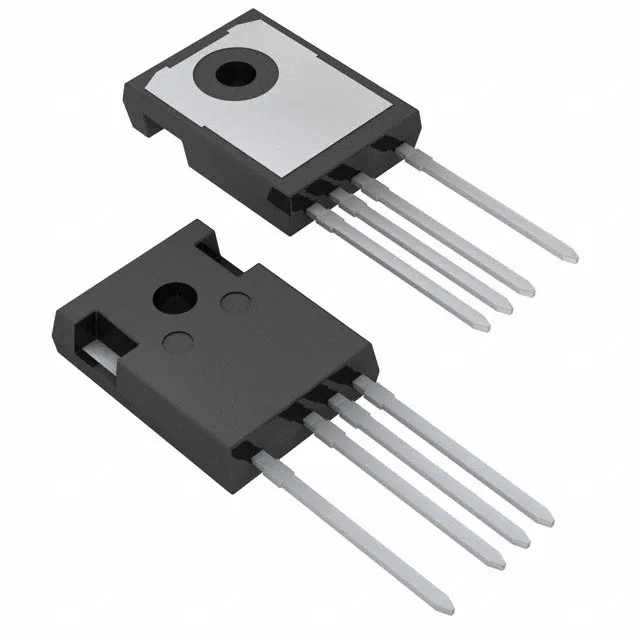

STW56N60M2-4 - STMicroelectronics
MPNSTW56N60M2-4
End of Life
MOSFET N-CH 600V 52A TO247-4L
$9.22Ref. price · indicative, final on quote
PackagingTO-247-4
RoHSROHS3 Compliant
SeriesMDmesh™ M2
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MDmesh™ M2 |
| FET type | N-Channel |
| Mounting | Through Hole |
| Drain to source voltage | 600 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 52A (Tc) |
| Power dissipation | 350W (Tc) |
| Operating temperature | 150°C (TJ) |
| Package | Tube |
| Vgs | ±25V |
| Technology | MOSFET (Metal Oxide) |
| Case | TO-247-4 |
| Vgs(th) (Max) @ id | 4V @ 250µA |
| Rds on (Max) @ id, vgs | 55mOhm @ 26A, 10V |
| Gate charge (Qg) (Max) @ vgs | 91 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 3750 pF @ 100 V |
