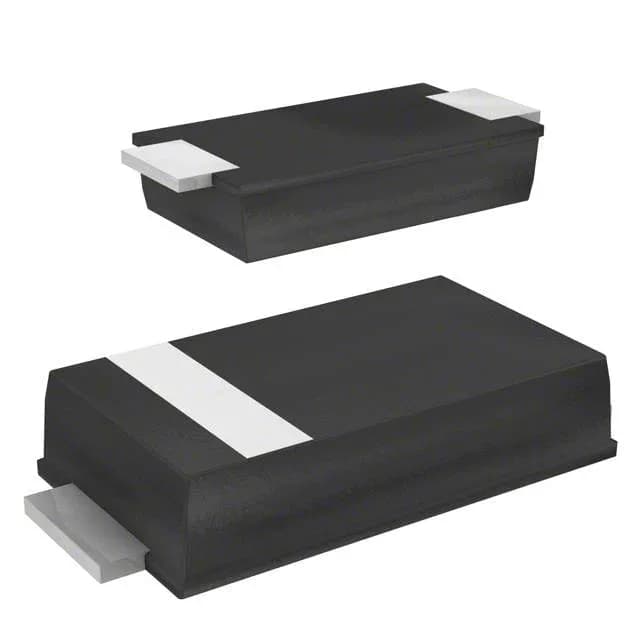

STMicroelectronics STPS2H100AF — Discrete Semiconductors

STPS2H100AF Schottky Diode, 100V 2A, AEC-Q101, SMAflat

MPNSTPS2H100AF
Active

STMicroelectronics STPS2H100AF, Automotive Schottky Diode, 100 V reverse, 2 A forward, 790 mV Vf at 2 A, AEC-Q101, DO-221AC SMA Flat Leads, -65°C to 175°C junction.

$0.4000Ref. price · indicative, final on quote
STMicroelectronics STPS2H100AF datasheet (PDF)
PackagingDO-221AC, SMA Flat Leads
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

STPS2H100AF specifications
ParameterValue
MountingSurface Mount
Voltage - DC reverse (Vr)100 V
Voltage - forward (Vf) (Max) @ if790 mV @ 2 A
Current - reverse leakage @ vr1 µA @ 100 V
Current - average rectified2A
Operating temperature - junction-65°C ~ 175°C
GradeAutomotive
SpeedFast Recovery =< 500ns, > 200mA (Io)
PackageTape & Reel (TR) Cut Tape (CT)
TechnologySchottky
QualificationAEC-Q101
CaseDO-221AC, SMA Flat Leads

Product details

Automotive Schottky — 100 V, 2 A, 790 mV Vf

The STPS2H100AF is an automotive-grade Schottky rectifier from STMicroelectronics, rated for 100 V reverse voltage and 2 A average forward current. Its forward voltage drop is 790 mV maximum at 2 A.

AEC-Q101 qualification gates the application

AEC-Q101 qualification is the line between this part and a commercial Schottky.

Reverse leakage at 100 V — 1 µA typ

Reverse leakage is specified at 1 µA at 100 V. For a 100 V Schottky, this keeps standby dissipation low in always-powered automotive modules.

SMAflat package — footprint and reflow

The SMAflat package is a low-profile surface-mount variant of the standard SMA footprint. The flat leads reduce the package height.

For production programs that run several years, this part does not introduce obsolescence risk at the diode level.

Frequently asked questions

Is STPS2H100AF AEC-Q101 qualified?

Yes, the STPS2H100AF is AEC-Q101 qualified, which is the automotive stress-test qualification for discrete semiconductors. It is suitable for under-hood and chassis-domain applications.
