STMicroelectronics STPS16170CR — Discrete Semiconductors

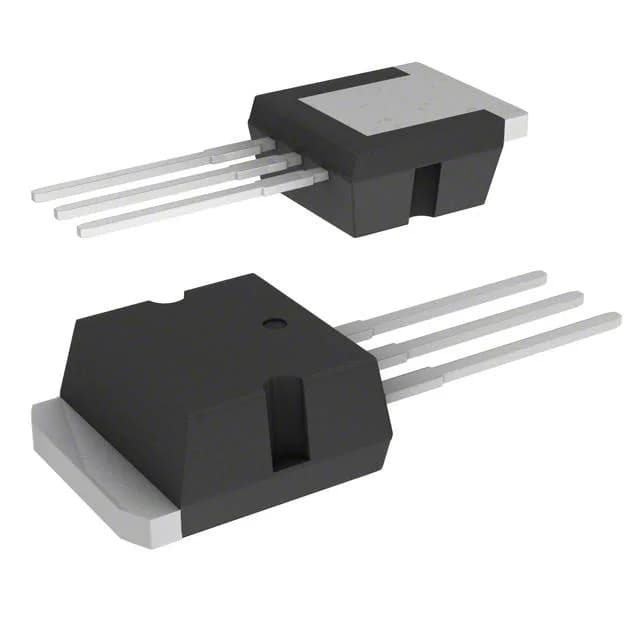

STPS16170CR Schottky Diode, 170V 8A Common Cathode, TO-262

MPNSTPS16170CR
Obsolete

STMicroelectronics STPS16170CR, dual Schottky rectifier, 170 V reverse voltage, 8 A average rectified current per diode, 920 mV forward voltage at 8 A, TO-262-3 (I2PAK) through-hole package.

$1.5700Ref. price · indicative, final on quote
STMicroelectronics STPS16170CR datasheet (PDF)
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

STPS16170CR specifications
ParameterValue
MountingThrough Hole
Voltage - DC reverse (Vr)170 V
Voltage - forward (Vf) (Max) @ if920 mV @ 8 A
Current - reverse leakage @ vr15 µA @ 170 V
Current - average rectified (Io) (per diode)8A
Operating temperature - junction175°C (Max)
SpeedFast Recovery =< 500ns, > 200mA (Io)
PackageTube
TechnologySchottky
CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Diode configuration1 Pair Common Cathode

Product details

What this dual Schottky does in the circuit

The STPS16170CR is a dual Schottky rectifier from STMicroelectronics, configured as a common-cathode pair in a single TO-262-3 (I2PAK) through-hole package. Reverse leakage is 15 µA at the 170 V blocking voltage. The junction temperature maxes out at 175°C. This part is typically used in high-frequency output rectification for switch-mode power supplies, freewheeling diodes in motor drives, and OR-ing diodes in redundant power systems where the Schottky's low forward drop and fast recovery (under 500 ns) reduce switching losses.

STMicroelectronics lists the STPS16170CR as obsolete. If you are in the design phase, plan for a last-time-buy or a validated alternative; do not lock a new board into an obsolete diode.

Package and mounting — through-hole I2PAK

The STPS16170CR comes in a TO-262-3 long-lead package (I2PAK, TO-262AA). It is a through-hole mount, which simplifies manual assembly and rework compared to surface-mount power packages. The I2PAK tab is the common cathode — plan the heatsink attachment accordingly. The tube shipping medium is fine for low-volume production runs.

Frequently asked questions

What is the replacement for STPS16170CR?

No official replacement part number is listed by STMicroelectronics. For a pin-compatible alternative, check the STPS16170CT — it shares the same 170 V / 8 A per diode ratings and common-cathode configuration, but comes in a TO-220AB package rather than the I2PAK. Verify the footprint and thermal interface before substituting.
