STMicroelectronics STM32L496VGY6TR, STM32L4 series, 32-bit ARM Cortex-M4 MCU, 80MHz, 1MB Flash, 320KB RAM, 83 I/O, 1.71-3.6V, -40 to 85°C, 100-WLCSP (4.62x4.14mm), Tape & Reel.
| Parameter | Value |
|---|---|
| Series | STM32L4 |
| Mounting | Surface Mount |
| Oscillator type | Internal |
| Program memory type | FLASH |
| Voltage - supply (Vcc (Vdd)) | 1.71V ~ 3.6V |
| Operating temperature | -40°C ~ 85°C (TA) |
| Speed | 80MHz |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| RAM size | 320K x 8 |
| Core size | 32-Bit Single-Core |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, PWM, WDT |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG |
| Number of i (O) | 83 |
| Core processor | ARM® Cortex®-M4 |
| Case | 100-UFBGA, WLCSP |
| Data converters | A/D 16x12b; D/A 2x12b |
| Program memory size | 1MB (1M x 8) |

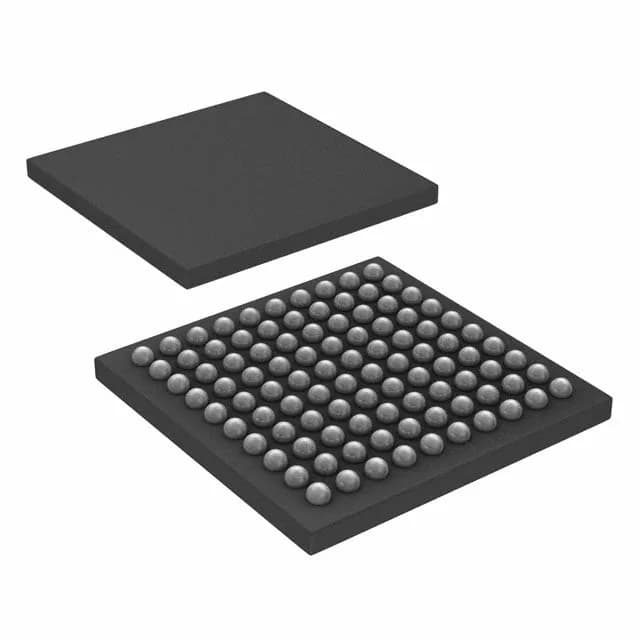

Housed in a 100-ball WLCSP measuring 4.62 x 4.14 mm, this package saves board area but demands careful PCB layout. No exposed thermal pad here — heat dissipation is through the solder balls and the board copper.
STMicroelectronics lists the STM32L496VGY6TR as an active product.
