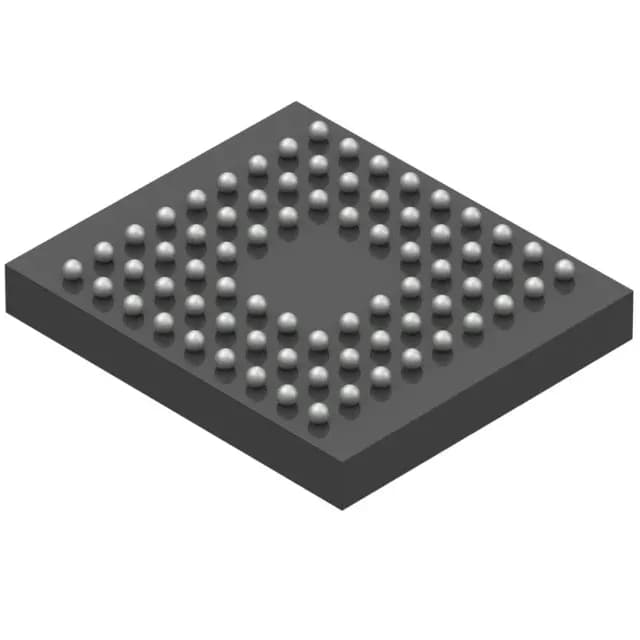

STMicroelectronics STM32L476JEY6TR — Microcontrollers & Processors (MCU / MPU / DSP)

STM32L476JEY6TR ARM Cortex-M4 MCU, 80 MHz, 512 KB Flash

MPNSTM32L476JEY6TR
Active

STMicroelectronics STM32L4 series, ARM® Cortex®-M4 32-Bit MCU, 80MHz, 512KB Flash, 128K x 8 RAM, 72-UFBGA/WLCSP, -40°C to 85°C, 1.71V-3.6V.

$9.3700Ref. price · indicative, final on quote
STMicroelectronics STM32L476JEY6TR datasheet (PDF)
Packaging72-UFBGA, WLCSP
RoHSROHS3 Compliant
SeriesSTM32L4
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

STM32L476JEY6TR specifications
ParameterValue
SeriesSTM32L4
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.71V ~ 3.6V
Operating temperature-40°C ~ 85°C (TA)
Speed80MHz
PackageTape & Reel (TR) Cut Tape (CT)
RAM size128K x 8
Core size32-Bit Single-Core
PeripheralsBrown-out Detect/Reset, DMA, LCD, PWM, WDT
ConnectivityCANbus, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG
Number of i (O)57
Core processorARM® Cortex®-M4
Case72-UFBGA, WLCSP
Data convertersA/D 16x12b; D/A 2x12b
Program memory size512KB (512K x 8)

Product details

STM32L476JEY6TR — ultra-low-power Cortex-M4 with 80 MHz and 512 KB Flash

The 72-WLCSP package (4.41 x 3.76 mm) saves board area but demands careful PCB layout for the fine-pitch ball array. Connectivity includes CANbus, I²C, SPI, UART/USART, USB OTG, QSPI, and SAI — enough for sensor hubs, motor-control interfaces, or human-machine-interface panels. The 57 I/O lines and the integrated LCD driver expand the application space to segmented displays and keypads.

72-WLCSP — footprint and layout considerations

The 72-WLCSP package (4.41 x 3.76 mm) requires a via-in-pad or microvia process to route the 57 I/O and supply balls.

Frequently asked questions

What is the core processor of STM32L476JEY6TR?

It uses an ARM Cortex-M4 core, 32-bit single-core, running at 80 MHz.

Does STM32L476JEY6TR have an equivalent or replacement?

The STM32L151CBU6A is a functional alternative from the STM32L1 series, but it uses a Cortex-M3 at 32 MHz with fewer I/O and less Flash. It is not pin-compatible — the package and footprint differ. For a direct second source within the STM32L4 family, consider other STM32L476 variants in compatible packages.
