The STM32L412C8U6 is an STMicroelectronics STM32L4-series 32-bit MCU built around an ARM Cortex-M4 core with floating-point unit, clocked at 80 MHz. That clock speed puts it in the performance tier for real-time control loops, audio processing, or moderate DSP work while staying inside the ultra-low-power STM32L4 family. The 64 KB Flash and 40 KB SRAM (40K x 8) give enough room for a FreeRTOS application with a USB stack and a modest data buffer — think a portable data logger or a battery-powered sensor hub that needs to crunch numbers before sending them up.
Supply range and temperature — the battery and environment story
That's the spec that makes the part a natural fit for battery-powered field devices.
Peripheral set — USB, Quad SPI, and the usual suspects
On the connectivity side, this chip carries USB (device), Quad SPI for external Flash or RAM, plus multiple I2C, SPI, and UART/USART interfaces. The Quad SPI is worth calling out — it lets you memory-map a serial NOR Flash for code shadowing or data logging without chewing up GPIO for a parallel bus. The 38 I/O lines in the 48-UFQFPN package are enough to handle a small display, a keypad, and a few sensors while keeping the board compact.

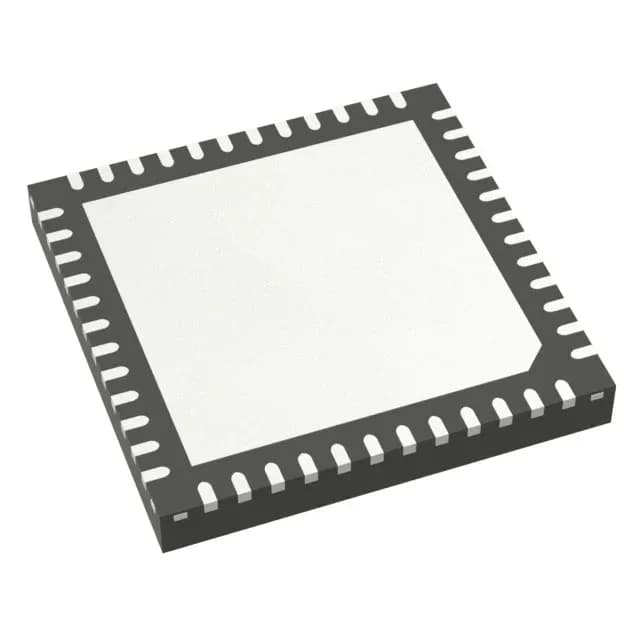

Package and footprint — 48-UFQFPN with exposed pad
For BOM planning, the base product number STM32L412 covers several Flash and package options, which gives some flexibility if you need to scale density later.
