STMicroelectronics STM32H723ZGI6 — Microcontrollers & Processors (MCU / MPU / DSP)

STM32H723ZGI6 STM32H7 MCU, ARM Cortex-M7, 550 MHz

MPNSTM32H723ZGI6
Active

STMicroelectronics STM32H7 series, STM32H723ZGI6, ARM Cortex-M7, 32-Bit Single-Core, 550 MHz, 1 MB Flash, 564K x 8 RAM, 114 I/O, CANbus, Ethernet, I²C, SPI, UART/USART, USB OTG, 144-UFBGA, -40°C to 85°C.

$12.6100Ref. price · indicative, final on quote
STMicroelectronics STM32H723ZGI6 datasheet (PDF)
Packaging144-UFBGA
RoHSROHS3 Compliant
SeriesSTM32H7
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

STM32H723ZGI6 specifications
ParameterValue
SeriesSTM32H7
MountingSurface Mount
Oscillator typeExternal, Internal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.62V ~ 3.6V
Operating temperature-40°C ~ 85°C (TA)
Speed550MHz
PackageTray
RAM size564K x 8
Core size32-Bit Single-Core
PeripheralsBrown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
ConnectivityCANbus, Ethernet, I²C, IrDA, LINbus, SAI, SmartCard, SPDIF, SPI, UART/USART, USB OTG
Number of i (O)114
Core processorARM® Cortex®-M7
Case144-UFBGA
Data convertersA/D 17x12b, 34x16b; D/A 2x12b
Program memory size1MB (1M x 8)

Product details

550 MHz Cortex-M7 — the performance tier for real-time control

The STMicroelectronics STM32H723ZGI6 is a 32-bit microcontroller built around the ARM Cortex-M7 core running at 550 MHz, placing it in the high-performance tier of the STM32H7 family. This part is designed for industrial control, motor drives, communication gateways, and audio processing applications that demand DSP and FPU throughput alongside deterministic real-time response.

1 MB Flash and 564 KB SRAM — firmware and data budget

The 1 MB Flash is sized for complex firmware stacks — RTOS, TCP/IP stack, file system, and application code — without needing external memory for most designs. The 564 KB SRAM (organized as 564K x 8) supports large data buffers for Ethernet frames, audio samples, or sensor logs. For a firmware engineer, this means the typical industrial gateway or motor-drive application fits on-chip; external SDRAM or NOR Flash is optional, not mandatory.

Connectivity — Ethernet, CAN, USB OTG, and more

The STM32H723ZGI6 includes an Ethernet MAC (supporting 10/100 Mbit/s), two CAN interfaces, USB OTG (host/device), plus multiple SPI, I²C, UART/USART, SAI, and SPDIF interfaces.

144-UFBGA package — footprint and layout considerations

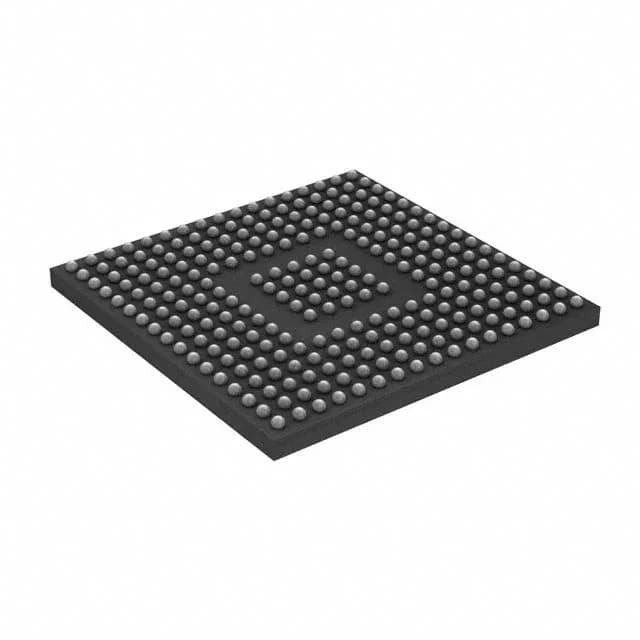

Housed in a 144-ball UFBGA measuring 7x7 mm, this package delivers 114 I/Os in a compact footprint. The fine-pitch BGA requires a multi-layer PCB with via-in-pad or microvias for routing, which adds to board cost compared to a QFP.

Active lifecycle — no end-of-life clock ticking

The STM32H7 series has broad distribution support, and the part is ROHS3 compliant.

Frequently asked questions

Does STM32H723ZGI6 support Ethernet?

Yes, the STM32H723ZGI6 includes an Ethernet MAC interface as part of its connectivity set, alongside CAN, USB OTG, and multiple serial interfaces.

Is STM32H723ZGI6 compatible with STM32H743?

Both are STM32H7 series parts with Cortex-M7 cores, but the STM32H743 offers higher memory and peripheral counts. The STM32H723ZGI6 is a cost-optimized member of the family; pin compatibility depends on the specific package variant — check the STM32H7 reference manual for the exact ball-map differences between the 144-UFBGA versions.

What is the alternative for STM32H723ZGI6?

The STM32L151CBU6A is a different product tier — a 32 MHz Cortex-M3 with lower memory and fewer peripherals — and is not a functional second-source for the STM32H723ZGI6. For a drop-in alternative within the STM32H7 family, consider other 144-UFBGA variants like the STM32H743ZGI6, but verify pin compatibility against the datasheet.
