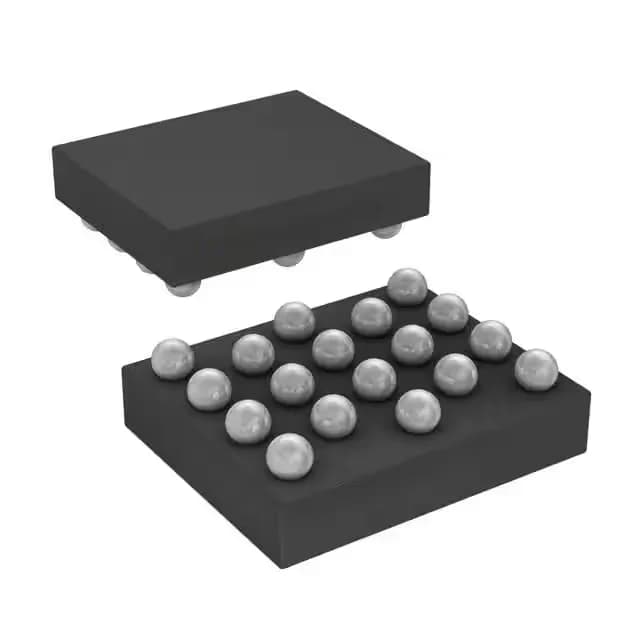

STMicroelectronics STM32G0 series, ARM Cortex-M0+, 32-Bit Single-Core, 64MHz, 64KB (64K x 8) FLASH, 8K x 8 RAM, 1.7V ~ 3.6V, 16 I/O, A/D 16x12b, -40°C~85°C, 18-WLCSP (1.86x2.14), Tape & Reel.
| Parameter | Value |
|---|---|
| Series | STM32G0 |
| Mounting | Surface Mount |
| Oscillator type | Internal |
| Program memory type | FLASH |
| Voltage - supply (Vcc (Vdd)) | 1.7V ~ 3.6V |
| Operating temperature | -40°C~85°C(TA) |
| Speed | 64MHz |
| Package | Tape & Reel (TR) |
| RAM size | 8K x 8 |
| Core size | 32-Bit Single-Core |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART |
| Number of i (O) | 16 |
| Core processor | ARM® Cortex®-M0+ |
| Case | 18-UFBGA, WLCSP |
| Data converters | A/D 16x12b |
| Program memory size | 64KB (64K x 8) |
The STM32G041Y8Y6TR: 16 I/O lines in the WLCSP package share pins with ADC channels and serial interfaces.
The WLCSP package requires a controlled assembly process with appropriate stencil design and reflow profile.
No — the lifecycle status is Active, meaning STMicroelectronics continues to manufacture this part with no announced end-of-life plan.
