Package and footprint — the WLCSP reality

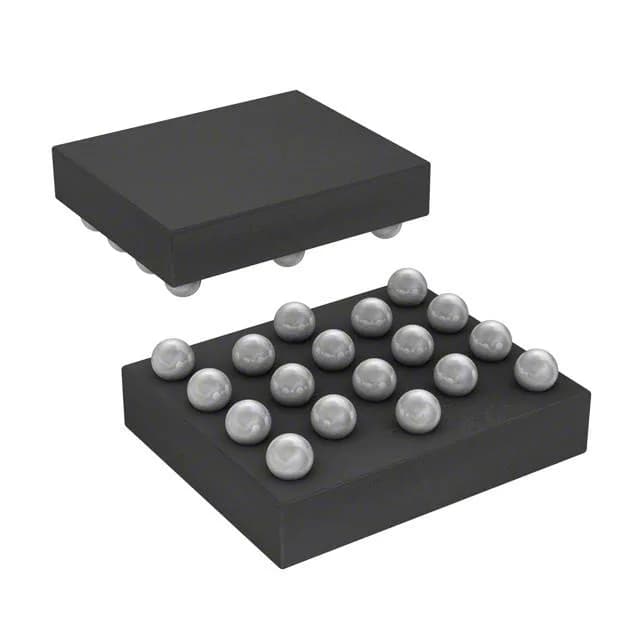

This part ships in an 18-ball WLCSP (Wafer-Level Chip-Scale Package) with a 1.86x2.14 mm body and a 0.4 mm ball pitch. The package is a direct-die-attach footprint — no plastic overmold, no exposed pad for thermal relief. That means the PCB land pattern must match the ball array exactly, and the assembly line needs a solder-paste stencil and reflow profile tuned for wafer-level packages. Moisture sensitivity is typically MSL 1 for WLCSP, but verify the reel label before opening the sealed bag.
Memory and peripheral budget — sizing the BOM
The 16-channel 12-bit SAR ADC covers multi-sensor analog front ends without an external mux. The peripheral set includes DMA, I²S, PWM, and a windowed watchdog timer — enough for sensor fusion, motor control loops, and serial protocol bridging in a compact footprint.
The part is RoHS3 compliant.
