STMicroelectronics STM32F765VGH6TR — Microcontrollers & Processors (MCU / MPU / DSP)
STMicroelectronics

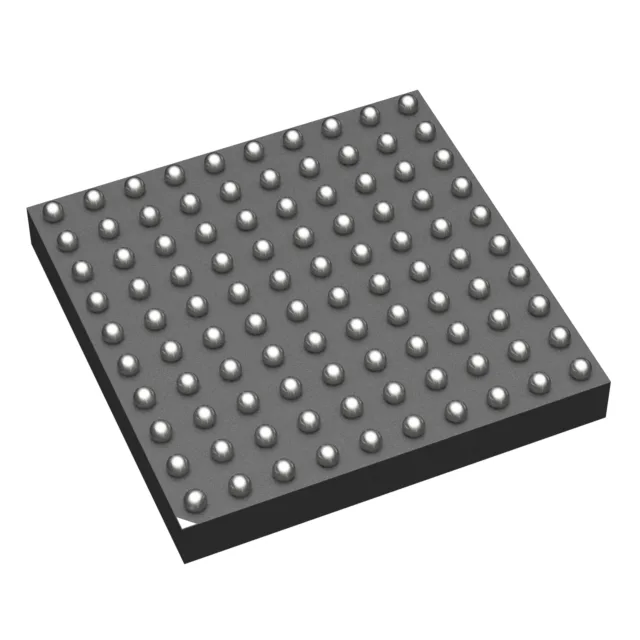

ST STM32F765VGH6TR ARM Cortex-M7 MCU, 216 MHz, 1 MB Flash, 100-TFBGA

MPNSTM32F765VGH6TR
Active

ST STM32F7 series ARM Cortex-M7 MCU, 32-bit, 216 MHz, 1 MB Flash, 512K x 8 RAM, 100-TFBGA, -40°C to 85°C.

$10.9514Ref. price · indicative, final on quote
STM32F765VGH6TR datasheet
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

STM32F765VGH6TR Technical Specifications
ParameterValue
SeriesSTM32F7
Mounting typeSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.7V ~ 3.6V
Operating temperature-40°C ~ 85°C (TA)
Speed216MHz
PackageTape & Reel (TR)
RAM size512K x 8
Core size32-Bit Single-Core
PeripheralsBrown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
ConnectivityCANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG
Number of i (O)82
Core processorARM® Cortex®-M7
Case100-TFBGA
Data convertersA/D 16x12b; D/A 2x12b
Program memory size1MB (1M x 8)

Product details

216 MHz Cortex-M7 with 1 MB Flash — what it means for the BOM

The STM32F765VGH6TR is a 32-bit ARM Cortex-M7 MCU from STMicroelectronics, clocked at 216 MHz with 1 MB of Flash program memory and 512K x 8 of RAM. This core speed and memory pairing handles real-time control loops, sensor fusion, and communication protocol stacks without external memory. The 100-TFBGA (8x8 mm) package fits compact PCBs in industrial automation, motor drives, and networked edge nodes. Connectivity includes Ethernet, CAN, USB OTG, multiple SPI and I2C interfaces, plus a QSPI for external Flash expansion.

Industrial temperature grade and supply range

Rated for -40°C to 85°C ambient. Supply voltage spans 1.7 V to 3.6 V.

Frequently asked questions

What is STM32F765VGH6TR's core speed and memory?

The core runs at 216 MHz and includes 1 MB of Flash and 512K x 8 of RAM, providing ample headroom for real-time control and communication stacks.

What is the package and temperature range for STM32F765VGH6TR?

It comes in a 100-TFBGA (8x8 mm) package and is rated for -40°C to 85°C ambient, making it suitable for industrial and outdoor environments.

What is the difference between STM32F765VGH6TR and STM32F765VGH6?

The 'TR' suffix indicates Tape & Reel packaging for automated pick-and-place. The STM32F765VGH6 (without TR) typically ships in tray or tube. Electrically and functionally they are identical.
