180 MHz Cortex-M4 with 2 MB Flash — what it buys you
The STM32F469BIT7 is ST's high-end STM32F4 series MCU built around an ARM Cortex-M4 core clocked at 180 MHz. That clock rate puts it in the performance tier for real-time control loops, graphics rendering (it has a built-in LCD controller), and protocol stacks that need headroom — Ethernet, USB OTG, and CAN all run concurrently without starving the application. The 2 MB of Flash and 384 KB of SRAM are sized for complex firmware with over-the-air update staging or a GUI frame buffer.
Industrial temperature rating — not just a sticker
The 105°C ceiling matters when the MCU sits next to a power stage or inside a sealed enclosure with no active cooling.
Connectivity and memory interface — system-level win
An on-chip Ethernet MAC with dedicated DMA and an external memory interface (EBI/EMI) for parallel NOR/NAND Flash or SRAM are the standout peripherals. The 161 I/O count in a 208-LQFP gives you enough pins to wire a parallel TFT display, a camera sensor, and a handful of serial buses without a CPLD.
Package and layout note

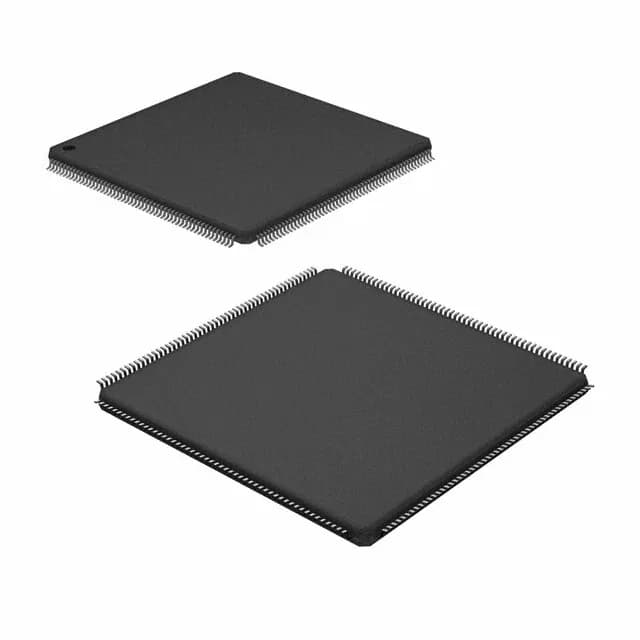

The 208-LQFP body is 28x28 mm with 0.5 mm pitch — a dense but hand-solderable QFP if you have a decent iron and flux.
No LTB window to chase, no last-time-buy math.
