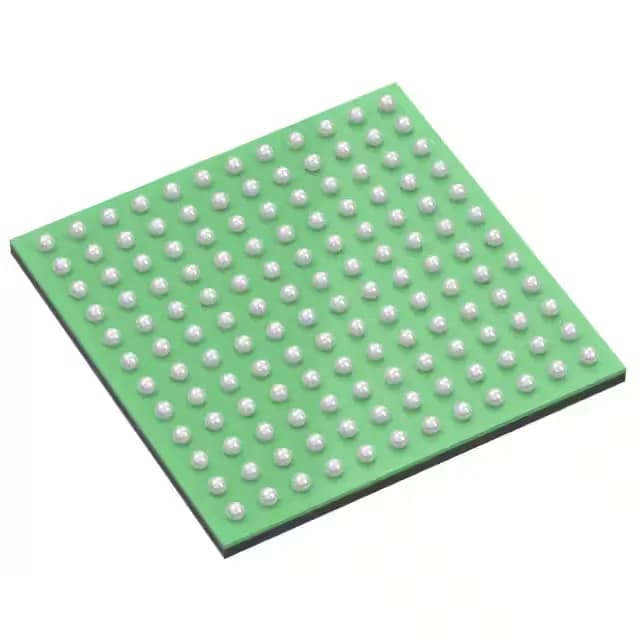

STM32F446ZEH7TR STMicroelectronics 32-bit MCU, 180MHz, 512KB Flash, 144-UFBGA
STMicroelectronics STM32F4 series, ARM Cortex-M4 32-bit single-core MCU running at 180MHz with 512KB Flash and 132KB RAM; 114 I/O, 24x12b ADC plus 2x12b DAC, USB OTG, CANbus, full communications suite; 1.7V to 3.6V supply, -40°C to 105°C rated; packaged in 144-UFBGA (10x10mm) on tape-and-reel.
- 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
- Date & lot codes on quoteStated per line before you commit; label photos on request.
- MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | STM32F4 |
| Mounting type | Surface Mount |
| Oscillator type | Internal |
| Program memory type | FLASH |
| Voltage - supply (Vcc (Vdd)) | 1.7V ~ 3.6V |
| Operating temperature | -40°C~105°C(TA) |
| Speed | 180MHz |
| Package | Tape & Reel (TR) |
| RAM size | 132K x 8 |
| Core size | 32-Bit Single-Core |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LVD, POR, PWM, WDT |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG |
| Number of i (O) | 114 |
| Core processor | ARM® Cortex®-M4 |
| Case | 144-UFBGA |
| Data converters | A/D 24x12b; D/A 2x12b |
| Program memory size | 512KB (512K x 8) |
Frequently asked questions
Is the STM32F446ZEH7TR still orderable, or is it obsolete?
The lifecycle_stage is eol_hot, meaning STMicroelectronics has flagged this part at end-of-life heat — the last-time-buy window is active or closing. Active catalog status can coexist with eol_hot during the draw-down period, but the eol_hot designation is the controlling sourcing flag. RFQ now for Q3 requirements.
Is the ZEH7TR interchangeable with the ZET6?
No — the ZEH7TR is in a 144-UFBGA (ball-grid array, 10x10mm) and the ZET6 is in LQFP-144 (leaded). They share the same die but not the package. The UFBGA requires a different baseboard layout, stencil design, and BGA-level rework capability. If you need LQFP-144 compatibility, source the ZET6 instead.
What is the availability window for a 100-unit Q3 build?
With eol_hot lifecycle status, the window is closing. Authorized-distributor allocation is being drawn down; broker-channel stock carries authenticity risk at this stage of lifecycle. Submit an RFQ now to lock in allocation before the last-time-buy date closes.
Does the USB OTG peripheral support BC 1.2 charging downstream for a 2A port design?
The USB OTG hardware is present, but BC 1.2 charging downstream-port compliance and host negotiation protocol support depend on the firmware implementation and the specific ST silicon revision. An external USB PHY may be required for a 2A charging port design — consult the ST datasheet and your USB certification plan.
